Standard horizon ef-35 air-feed paper folder–duplo baum

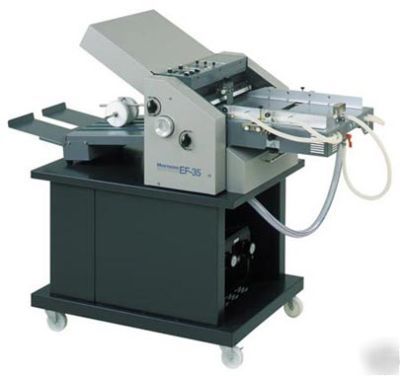

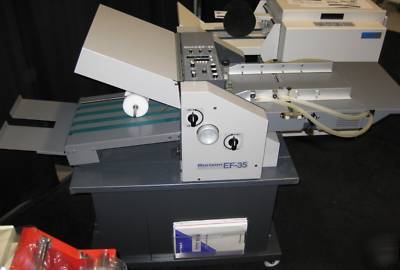

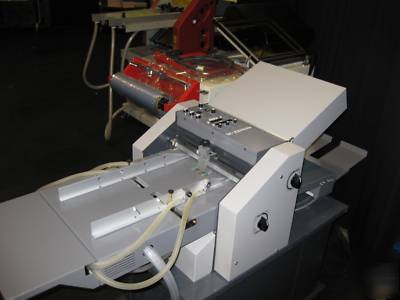

Standard Horizon EF-35 Air-Feed Paper Folder Duplo Baum
This is an out of box Demo paper folder that has never been sold to an end user. At the offered price, this is an excellent value priced at $2,000 off the original retail price of $8,895.
When comparing this machine to lesser priced units on the web, please consider that PFS is an authorized Horizon dealer and our trained and certified technicians have gone completely through this machinery to guarantee trouble-free performance for many years to come.
If you require crating, transportation, installation, training, etc. please contact us for a quote. This is our business and we know how to do it right the first time. Thank you!!!
The Standard Horizon EF-35 provides a clear choice for tabletop suction feed folding needs. Capable of folding 30,000 sheets per hour, the EF-35 delivers both command and control to the operator for every folding job. Complete with combination rubber and steel folding rollers and self-compensating gapping, the EF-35 is as easy to set up as it is to operate. The steel folding rollers encompass horizontal machining found on paper folders that can cost 4-5 times more, the grooving on the rollers provides positive sheet grip while minimizing scratching and scuffing on today's advanced digital stocks. This unique folder, serves the traditional print markets as well, with its great range of stock capabilities and productive throughput.
Batch counter (preset stop/pause modes with audible alert).
Self adjusting fold roller gapping.
Fine feed-adjustment controls.
Variable speed output conveyor.
EF-35 Suction Feed Paper Folder
Variable; Up to 30,000 sheets per hour (8.5" x 11" single fold)
6 presets - Letter fold, Single fold, Half Accordion fold, Double Parallel fold, Z fold, Gate fold (Supports Custom Folding)
Up to 350 sheets, 20# bond (approx. 1.6 inch pile height) Continuous Top-load Bottom-feed
Glossy Finish and Non-Glossy Finish

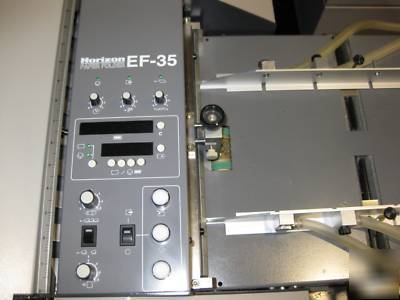

Digital Display + Batch Counter
Automatic Top-Load Bottom-Feed with Suction and Pressure Pump
220V, 50/60 Hz, Single Phase, 16.8 Amp
Half Accordion (Fold-out, Engineering) fold
We Really Want To Sell This Equipment
