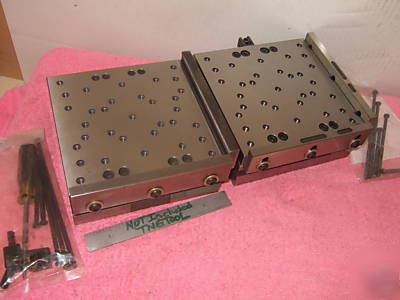

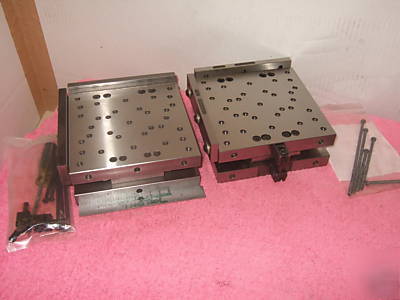

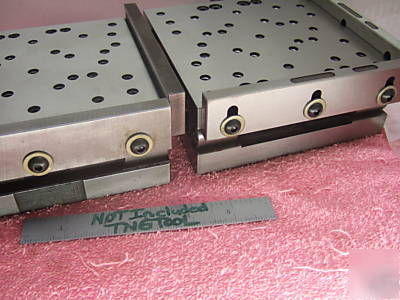

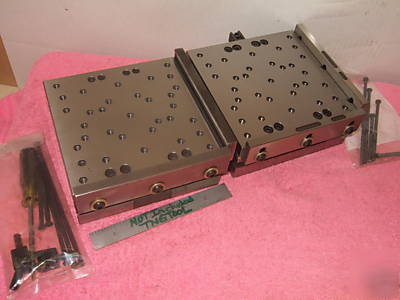

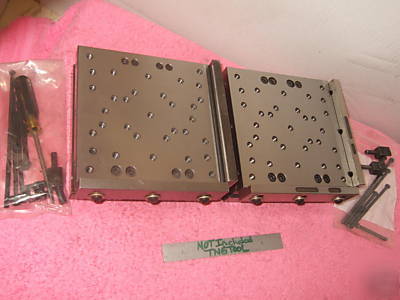

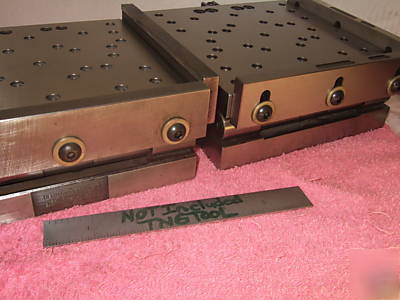

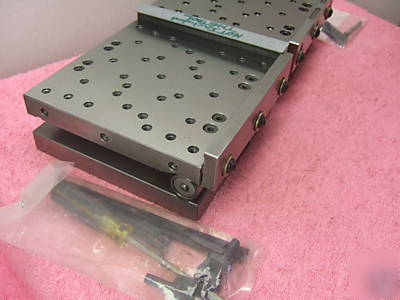

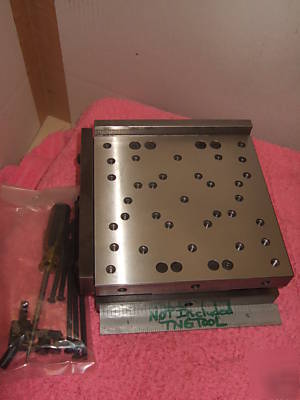

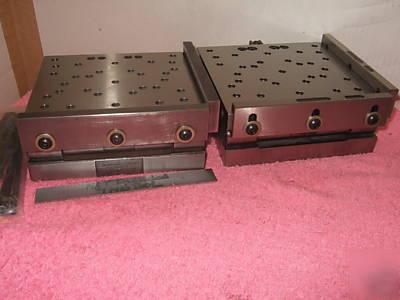

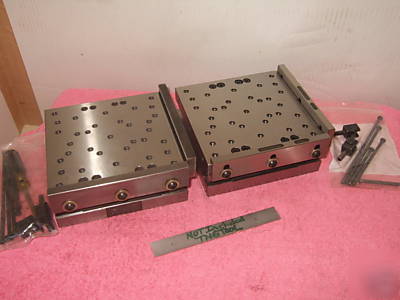

Sine plate 6X6 hermann schmidt toolmaker machinist wow

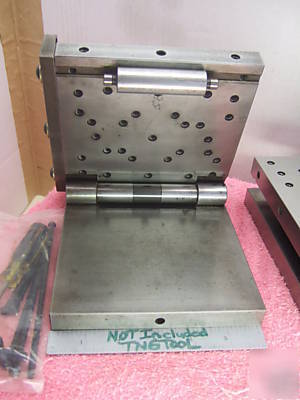

(33) TAPPED 1/4"X20 HOLES AND (12) TAPPED 1/4" X 20 ON SIDES AND ENDS OF TOP PLATE FOR RAIL (1 IS INCLUDED). BOTTOM PLATE MEASURES 6" WIDE X 6" LONG WITH THE SCHMIDT LOCKING STYLE HINGE ALSO! SAVE SOME $$$$ HERE!
CURRENT LIST FOR A NEW ONE IS $1250.00!
Made of quality steel, hardened to 58-62 Rc.
Minute angle step .200" built into the gage block roll. Eliminates steps in base plate.
Large hinge pins for extra strength.

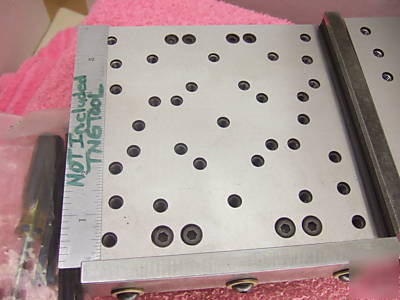

Tapped holes in top plate 6" x 6" ARE 1/4-20.
