Osram quicktronic dimmable T5 ballast qtidali 1X14W-80W

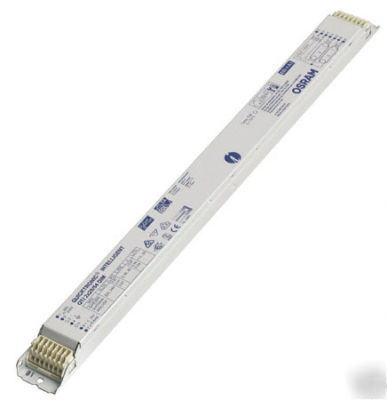

OSRAM Quicktronic Dimmable T5 Ballast QTI DALI 1x14W-80W
* "Fluorescent lamps-ECG - T5 - DALI DIM"
* Supply voltage: 220 to 240 V
* Line frequency: 0, 50 to 60 Hz
* Digitally controlled preheating
* Optimum preheating in any dimmer setting
* Cut-off above 80% luminous flux
* Lamp start from any dimmer setting throughout the temperature range
* Constant output during line voltage fluctuations
* Same luminous flux with direct and alternating current
* Dimming range 100 to 1% luminous flux
* Automatic safety shutdown of lamps in the event of a defect or at end of life (EOL)
* Automatic restart after lamp replacement
* Energy Efficiency Index EEI = A1
* Approval marks: ENEC 10 sign, VDE sign, EMV-sign
* Safety acc. to EN 61347-2-3
* Lamp operation acc. to EN 60929
* RI suppression: acc. to EN 55015, EN 55022
* Additional features: EOL sign, Cut off sign
* Control via the DALI interface
* The control input of the DALI interface is protected against overvoltage and polarity reversal in all OSRAM ECGs
* Touch DIM and Touch DIM Sensor functions1)
* Touch DIM and Touch DIM Sensor functions for OSRAM QTi DALI ... DIM ECGs are not part of the DALI stan
* Design / Version : ECG-DALI
* Standard : EN 55015; EN55022 / EN 61547 / EN 61000-3-2
* Operating frequency : 76...120 kHz / 53...120 kHz
* TH full width at half maximum : 170 s
* Power factor c : 0.96; 0.96
* Maximum current at DIM interface : 2mA
* Max. no. of ECGs on circuit breaker 10A : 17
* Max. no. of ECGs on circuit breaker 16A : 28
* Technical - Light Technical Data
* Luminous flux : 1200; 1750; 1700 lm
* Operating frequency : 85...120 kHz / 53...120 kHz
* Power factor c : 0.96; 0.97
* Luminous flux : 1900; 3100 lm
* Operating frequency : 83...120 kHz / 44...120 kHz
* Power factor c : 0.97; 0.98
* Luminous flux : 2600; 4450 lm
* Operating frequency : 91...120 kHz / 64...120 kHz / 44...120 kHz
* TH full width at half maximum : 220 s
* Lamp Wattage : 35W; 49W; 80W
* Power factor c : 0.95; 0.97; 0.98
* Max. no. of ECGs on circuit breaker 10A : 12
* Max. no. of ECGs on circuit breaker 16A : 19
* Luminous flux : 3300; 4300; 6300 lm
* Mounting hole spacing, length : 350 mm
* Wire preparation length, output side : 8....9 mm
* Wire preparation length, input side : 8....9 mm
* Maximum casing temperature in the event : 110 C
* Maximum operating temperature at the Tc : 75 C
* Ambient temperature range : +10 ... +50 C
* Relative humidity : 5 ... 85 %; max. 56 d/y at 85 %
* Model: QTi DALI 1 x14/24 DIM /QTi DALI 1 x21/39 DIM (Available for selection)
* Model: QTi DALI 1 x28/54 DIM / QTi DALI 1 x35/49/80 DIM (Available for selection)
* Cater to Tube Watt: 14/24W; 21/39W; 28/54W or 35/49/80W (Available for selection)
Unit Price:US$709.59/12pcs
Our Ref. G400/HD316/PM165/OP12
