New port qty. 2 pcx optical lens KPX088AR.33 new

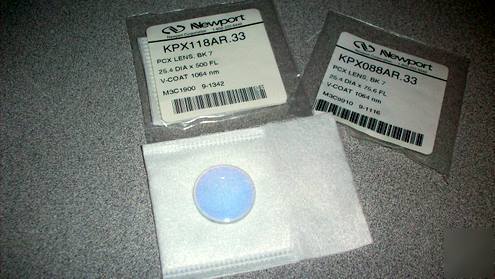

Newport Qty. 2 PCX Optical Lens KPX088AR.33 New
BK 7 Plano-Convex Lens, 25.4 Dia, 75.6 EFL, 1064nm
These Lens Retail new for $76 each on the Newport Website
"The KPX088AR.33 BK7 Precision Plano-Convex Lens is designed to meet the demanding requirements of laser electro-optic applications. Manufactured from fine annealed optical glass and polished to tight tolerances using master test plates ensures minimum wavefront distortion. Tight surface quality tolerances minimize scatter and unwanted diffraction effects. This 1 inch (25.4 mm) diameter lens has a 75.6 mm effective focal length, /4 surface irregularity, and 40-20 scratch-dig. BK 7 is an excellent material for most visible and near infrared applications. It is the most common optical glass, and it provides great performance at a good value. This singlet lens has our AR.33 antireflection coating for a 1064 nm wavelength."
http://search.newport.com/?q=KPX088AR.33
