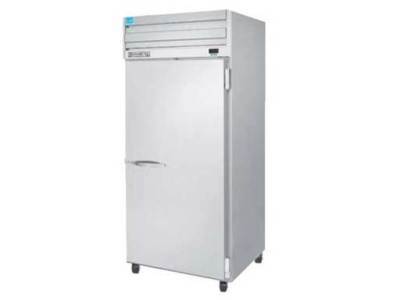

New brand beverage air extra wide 1-door refrigerator
This is a great deal on a great piece of commercial refrigeration!
Heavy duty construction includes stainless front (doors and grilles) with #3
finish. Exterior sides are steel with gray, acrylic finish. Exterior top, back,
and bottom are galvanize steel. Exterior mounted thermometer is digital
type. Interior cabinet liner is anodized aluminum finish. Interior pilasters are
regular type. Interior shelves are steel wire-coated.
Cabinets are insulated with R22 foamed-in-place polyurethane insulation, 2
minimum thickness. All doors are full size unless specified half size and
include keyed door locks as standard with solid doors. Doors attach to cabinet
on cam lift hinges. Hinges permit doors to stay open at 120 degrees
and gravity self-close. A plug-in type, vinyl magnetic gasket is attached to
each door. Shelves are adjustable on 1/2 centers. Traffic tough work flow
handle is standard. Door openings include low wattage, anti-condensate
heaters. A switch located at the top of each full door opening activates light
and shuts off evaporator fan motor(s) when door is opened. Six inch,
adjustable, corrosion resistant legs are standard. A 9 cord is provided with
Unit s system is located at top of cabinet. A capillary tube is used to
meter R134A refrigerant between condenser and high humidity,
coated evaporator coil. Temperature control is located behind front
grill. Hot gas (non-electrical) condensate evaporator is located at top
Beverage-Air s unique down-duct air distribution provides the ideal
environment for food preservation. Refrigerated air is discharged
from an insulated evaporator coil compartment located above the
interior top of cabinet into a distribution plenum. From the plenum,
air is discharged down both sidewalls one half way back. In two section
models, 3-way air discharge is accomplished with an additional
down duct located on the center back wall from the discharge
plenum for the floor. In three section models, 4-way air discharge is
accomplished with two additional down ducts located on the back
wall. Air is returned upward across the full width of the interior into
a louvered plenum assuring even temperatures throughout the cabinet.
*Freight charges will apply. Please email for a quote.
