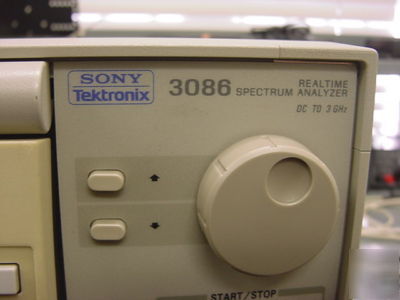

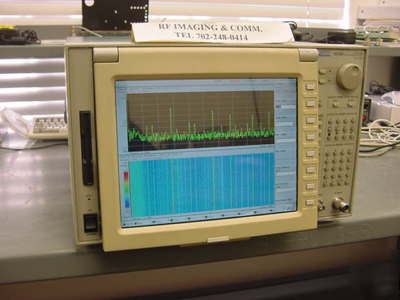

Tektronix 3086 3GHZ real time spectrum analyzer
The Tektronix 3086 is a DC to 3 GHz real-time spectrum analyzer that allows the seamless capture of frequency spectra with spans up to 30 MHz (5 MHz - 3066). This allows the spectrum of burst signals, such as those from GSM, IS-136, PDC or partial rate CDMA mobile stations, to be easily captured and examined. Real-time spectrum analyzers take a very different approach compared to traditional sweeping spectrum analyzers. Rather than acquiring one frequency step at a time, the real-time instrument captures a block of frequencies all at once. Because the instrument samples these full frames constantly (rather than waiting for each discrete frequency step to be measured), the signal can come or go as it pleases and the real-time spectrum analyzer will detect the change instantly.

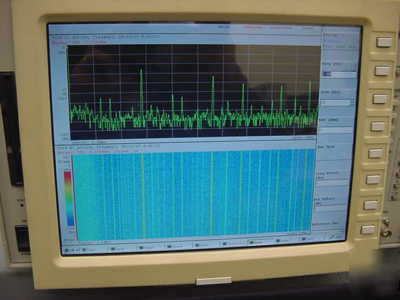

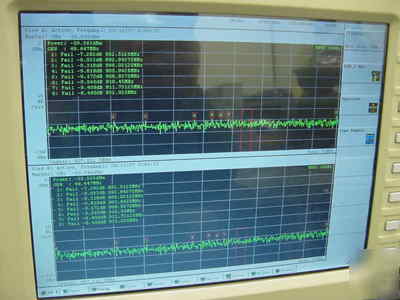

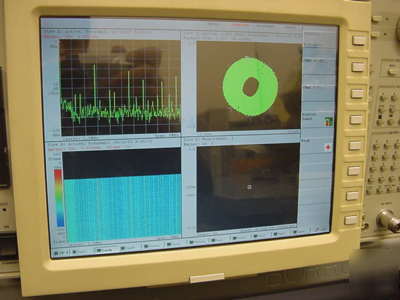

The 12.1 in. color TFT display allows easy viewing of spectrum, waterfall displays, spectrograms and digital modulation analysis screens. Constellation and vector diagrams can be displayed, as well as frequency, phase, magnitude, I and Q versus time, for in-depth analysis of digitally modulated signals. Users can move a marker through the time record and analyze the modulation at any point. In particular, signals with symbol rates up to 20.48 Msymbols/sec (3066 - 5.3 Msymbols/sec) may be analyzed during and after capture. This facilitates analysis of W-CDMA signals with chip rates up to 16.384 Mcps.
* Seamless Acquisition for Capture of Short Duration or Intermittent Events
* Analyzes in Frequency, Time and Modulation Domain
* DC to 3 GHz Coverage
* Frequency Event Trigger for Acquisition of Burst or Infrequently Occurring Signals
* Post Capture 1000:1 Zoom Allows Analysis of Individual Signals After Wideband Capture
* Code Domain Power and Complementary Cumulative Distribution Function (CCDF) for IS-95, W-CDMA Signals
* CCDF for Multi-carrier and W-CDMA Signals
* 1st, 2nd, and 3rd Generation Cellular/PCS R&D - Including GSM, CDMA, IS-136, PDC, W-CDMA
* Signature Analysis
* Spectrum Monitoring
* Settling Time Measurements for Oscillators and Synthesizers
* Phase Hit Capture and Measurement
* Debugging of Hardware/Software Interface Problems
