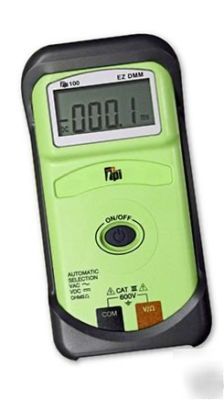

TPI100 digital multimeter automatically switches ac dc
No more guessing what range to switch your meter to the TPI 100 does it automatically!
* Automatically switches between ACV, DCV, and ohms (resistance). BenefitSimple to use. Meter selects function and range, just connect the leads to the device under test.
* Single button operation. BenefitEZ to use. Enables users with limited knowledge to perform tests safely.
* 0 to 600 volts AC and DC BenefitEnough range to safely perform measurements
* 10 M internal impedance. BenefitHigh impedance prevents inaccurate reading caused by circuit loading.
* Auto power off. BenefitIncreases battery life by turning off the multimeter when not in use.
Maximum Input: 600V (Minimum Input = 1.5V) Maximum Resolution: 0.001V Accuracy: +/-0.5%
Maximum Input: 600V (Minimum Input = 1.7V) Maximum Resolution: 0.001V Accuracy: +/-0.8%
Maximum Input: 40M Maximum Resolution: 0.1 Accuracy: +/-0.8%
Temperature (K-Type Thermocouple)
Auto including function selection
32 F to 104 F (0 C to 40 C)
14 F to 122 F (-10 C to 50 C)
6 x 3.1 x 1.2 (187mm x 86mm x 33mm) with boot
