New duplex ir heating bga rework station

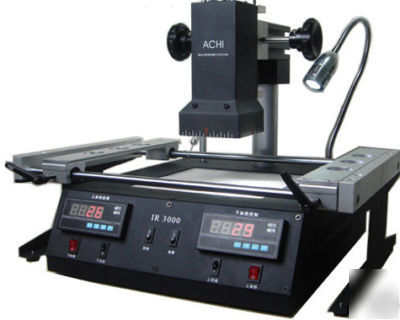

NEW duplex IR heating BGA rework station IR3000
Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.
The ACHI IR-3000 is a duplex IR heating BGA rework station. It can be afforded to weld, remove and rework the applications with different packages and mutil-level base board such as BGA,PBGA,CSP and make lead-free welding. The target of this product is BGA packages (including north and south bridges Chipsets) of the main boards and video cards of notebooks, desktops, XBOX, switches and so on.
Its features contains as follow:
1. Duplex IR heating system. Large IR pre-heating from the bottom will heat the PCB evenly to avoid deformation and keep solder effect, heating board is independent controlled , in contrast with Hot Air Heating, the process of heating is more stable. More, there is no nozzles required and can help you save the costs.
2. Independent heating for the top and bottom sides, also Independent heating up for the both sides. In this way, it is easier to control. Also, Over and Under Heat Alarm.
3. We have taken full consideration to the situation of small workshops and cut down the costs as possible while this product can realize the main functionalities (BGA manual welding, lead-free soldering) of the advanced rework system.
4. The station is parted designed, with high quality, and can be handled conveniently. Use of innovative design, do not need to connect your computer can easily operate
5. No hot air flow in process of rework, does not affect the surrounding micro-components
6. The upper part of heating a large area can easily rework the various CPU block, all kinds of shielding enclosures, replacement of various components slot
7. The machine can be very reliably to replace the double-layer BGA chips.there won t solder paste betweem Double-layer BGA chip .
8. The machine can heat chip BGA solder ball directly, steel mesh is not deformed in the heating process
9. The machine can do the circuit board drying and shaping circuit board
10. In addition, we have prepared an introduction for you, and the supplementary instruments in it are common. By the guide of the introduction, you can master the skills even you know nothing of BGA manual welding.
The heating elements: Dark Infrared 400w
Applicable BGA size: 65mm 65mm
Bottom preheating components: Infrared 800W
Bottom preheating components size: 180 mm 180 mm
The heating regulation: Up and down Left and right
ACHI BGA repair station product performance comparision
Bottom preheating components size
We strongly recommend that you to insure your delivery by adding a fee of US$5.00. Otherwise, we are NOT responsible for any lost packages.
Due to variation of postal service in different areas, some areas may take a little longer
Please Note : We don't accept any Money
For any defect, in the judgment of SurpTime, damage and malfunction caused by manufacturing, material or products' bad quality under normal use, also faults during the delivery, you can get repair freely, return the product or exchange etc. (not including: the easy consumption Disk and CD).
Free guarantee service excludes attachments, auxiliary assembly, delivery fees and the expense of other operating charges.
Free service will not be provided if:
It has been explicitly or implicitly modified, tamped with or alerted or repaired in any way by persons other than technicians of us.
It has been damaged through misuse, negligence, accident.
It has become malfunction as caused by power interruption or abnormal voltage input or natural calamities.
Damage of using it beyond the product is applicable.
The Service are available Worldwide for all of our items.
This bylaw is the certification for free repair under the certain period and conditions.
Always use your products for its intended use, as described in the manual of the product.
If the products can not work normally after you receive, please have it inspected at the place of purchase or authorized service center. or you can contact us directly.
The products of damage and malfunction caused by manufacturing, material or products' bad quality under normal use, also faults during the delivery will be offered returns or refunded.
All defective products must be returned within 21 Business-Days from the date of arrived.
For products returned in accordance with this policy, you should receive replacement within 14 Business days from the date we receive the products.
For products returned in accordance with this policy, you will receive the refund within 3 business days after we receive your products.
