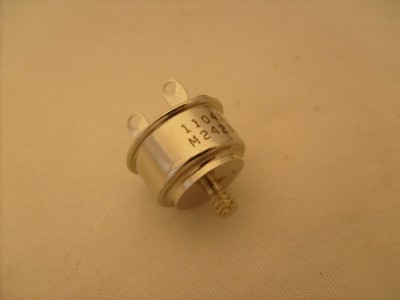

Mil-s-24236 switch sensata # 110413210 120VAC 28VDC
MIL-S-24236 SWITCH SENSATA # 110413210 120VAC 28VDC
NEW GOVERNMENT SURPLUS ITEM NSN 5930002505517
0.187 INCHES NOMINAL ALL THREADED STUD
0.540 INCHES MINIMUM AND 0.640 INCHES MAXIMUM
-65.0 DEG FAHRENHEIT MINIMUM AND 500.0 DEG FAHRENHEIT MAXIMUM
0.138 INCHES ALL THREADED STUD
1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION
2.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE AND 1.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE AND 500.0 MILLIAMPERES LAMP LOAD FIRST VOLTAGE
5.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE AND 2.5 AMPERES INDUCTIVE LOAD SECOND VOLTAGE AND 1.0 AMPERES LAMP LOAD SECOND VOLTAGE
DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE
9.00 DIFFERENTIAL POINT NOMINAL DEGREES FAHRENHEIT AND 149.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 158.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT
CONTACT VOLTAGE RATING IN VOLTS
115.0 AC AT SEA LEVEL FIRST VOLTAGE
28.0 DC AT SEA LEVEL SECOND VOLTAGE
81349-MIL-S-24236 SPECIFICATION
81349-MIL-S-24236/1 GOVERNMENT SPECIFICATION
