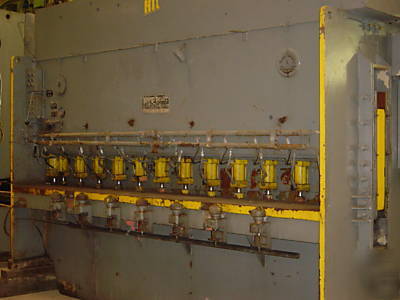

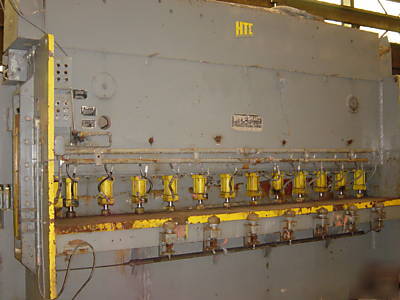

Htc hydraulic shear 12' x 3/4" w/powered back gage 20HP
HTC HYDRAULIC SHEAR 12 FT X INCH MILD STEEL
3. Capacity inch mild steel
6. With back gage control (min max 48 )
7. With 7 rollers for easy material movement
8. 12 ft 4 inches between side frames (inside)

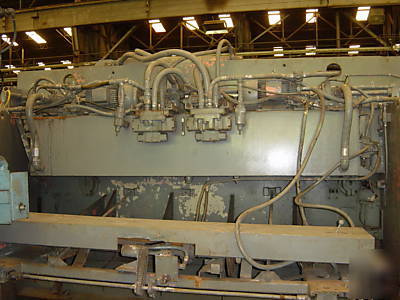

9. 2 ea. 10 hp hydraulic motors
10. Pit required 14 inches deep x 6 inches wide x 12 ft. 8 inches long
11. Over all dimensions 14 ft. 7 inches x 9 ft. 5 inches x 10 ft 6 inches tall
12. Electrical requirements 230/460 volts 3 phase
Condition Good, as removed from service.
