Gweike laser engraving and cutting machine LG1290

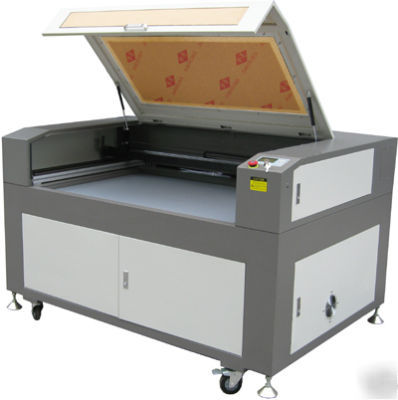

Gweike laser LG1290(47.2'' X 35.4'')

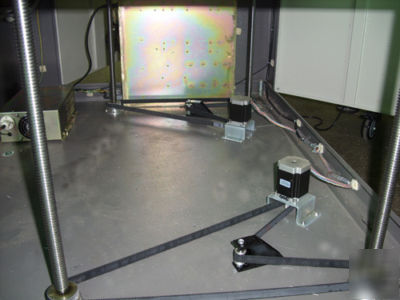

The unique decelerate design make the mechanical system move stably and smoothly.
The edge of cutting is smooth and there is no sawtooth. The software adopts
continuous curve method to get faster cutting speed.
Supply with CE certificate, FDA
1) Engraving area: 1200 x900mm
2) Whole machine size: 1,720 x 1310x 1070mm
3) Laser power: 60w(optional 80W)
4)Cutting speed: 0 - 24,000mm/min
5) Resetting positioning accuracy: 0.1mm
6) Power supply: AC 110 - 220V 10%, 50 - 60Hz
8) Operating temperature: 0 - 45 C
9) Operating humidity: 8 - 95%
10) Minimum shaping character: English 1 x 1mm
11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI
13) Cooling mode: water-cooling and protection system
14)Auxiliary equipments :Exhaust-fans, air-exhaust pipe
15)Controlling software : DSP control system.
16)Compatible software: CorelDraw AutoCAD Photoshop
17)Laser- type: Sealed CO2 laser tube
2.Optional equipment: Price(need to pay extral)

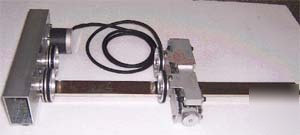

1.Rotary device:to engrave cylindrical material,such as pens,bottles
2.Rise-down platform:adjust the height of table,enable the max thickness of material to reach 450mm
3.Red pot point of position:realize simulation engraving,fast find the position
4.Auto focus:engrave uneven surface

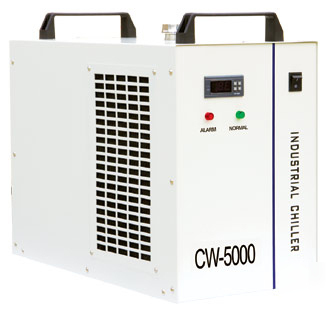

5.Chiller unit:cool circular water
6.Air pump:blow away the wast material and coolen proceed material surface
4.warranty:the machine for one year,and the laser tube is for 90 days
