Agilent U1064A acqiris DC241 high-speed cpci digitizer
Agilent U1064A Acqiris DC241 High-Speed 8-bit cPCI Digitizer with 8-16 Mpoints acquisition memory option
Agilent U1064A Acqiris DC241-M8M High-Speed 8-bit cPCI Digitizer
with 8-16 Mpoints acquisition memory option
The digitizer sold in this listing is Acqiris DC241 that is essentially the same thing Agilent U1064A since Agilent has acquired Acqiris and remarketed the product. It has been pulled from a working Acqiris CC108 cPCI crate and should be compatible with Agilent U1056B cPCI crates.
* Dual-channel 8-bit digitizers with up to 4 GS/s sampling rate
* Acquisition memory from 512 kpoints up to 32 Mpoints (optional)
* Full featured 50 front-end with internal calibration
* Built-In high resolution TTI for accurate timing measurements
* 1 GHz Auto-Synchronization-Bus (ASBus) for trigger and clock signal distribution
* Modular, 6U CompactPCI Standard (PXI Compliant)
* Reduced total power consumption < 40 W
* High-speed PCI bus transfers data at sustained rates up to 100 Mbytes/s to host PC
* Windows 95/98/NT4.0/2000/XP, VxWorks and Linux are supported
* "Plug & Play" installation
* Software and drivers are NOT included, but can be downloaded by following the link below
http://www.home.agilent.com/agilent/techSupport.jspx?cc=US&lc=eng&nid=-35502.729904&pid=1184917&pageMode=DS)
Typical applications using these products include astrophysics, T&M ATE, commercial and industrial T&M ATE and aerospace defense T&M applications.

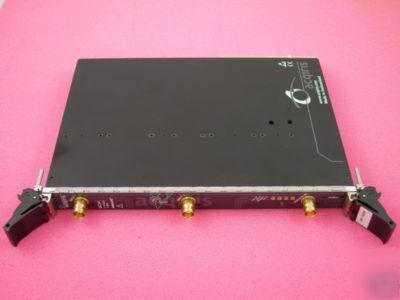

This equipment is priced and packaged without any accessories, cables or software other than those mentioned or pictured in the listing. I tried to be as detailed as possible so please see the pictures below. You will receive this oscilloscope as pictured. If you have any further questions, please do not hesitate to contact us.
