Sawmill bandmill log loader loading trailer plans on cd
This four post band mill carriage can cut up to 29 inches in diameter and requires a minimum nine horse Honda engine. All drawings are included to build this carriage. A small amount of machining is required. The tracks for the carriage to run on are not included in this design however they are very simple to build, you'll need two pieces of angle iron and a straight flat surface to mount them on
[Click to enlarge image] [Click to enlarge image] [Click to enlarge image]
Click thumbnails to view fullsize drawings, click here to view complete list of drawings.

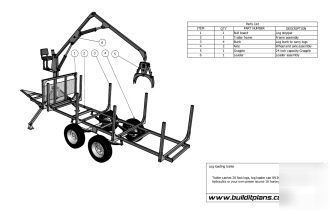

Pull behind your pickup and get the logs to your sawmill the easy way. This log loading trailer can self load and unload, all hydraulic design can be powered off your PTO added to your pickup or perhaps an 18 horse engine, plans come with all drawings needed to build this unit including the log grapple the loader and the trailer. The unit has many uses, the loader can be mounted on your own trailer or pickup truck independent of any trailer.
Click to enlarge Click to enlarge Click to enlarge
Verticle bandmill design concept, cuts with the blade running verticle, slabs and lumber fall away to the ground, 30 inch cutting capacity.
These wood boiler plans are for a round firebox design non-pressurized system. The wood boiler can be used to heat your shop or home and domestic hot water. Firebox can except up to 4 foot long logs 16 inches in diameter, this unit is not air injected what can be converted to an air injected model very easily beat the cost of high heating oil prices and get rid of some of your wood waste at the same time
Plasma or oxygen cutting table
Build yourself a table to cut complex patterns in a 4x4 sheet of steel use your plasma cutter or oxygen and acetylene torch to easily trace a pattern and accurately cut it out of steel
Build a bandmill blade repair jig and learn how to repair your broken bandmill blades, step by step instructions with photos on how to weld your blades back together if the are broken
