> Okuma model #lc 20-2 cnc lathe

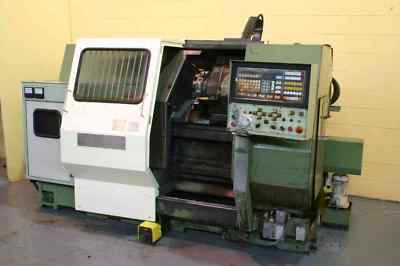

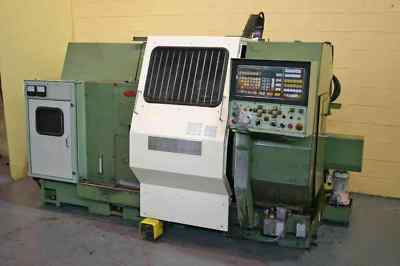

Okuma model #lc 20-2 cnc lathe
OKUMA MODEL #LC 20-2 CNC LATHE
SERIAL .............................. 5503-0330
MODEL ............................... LC-20-2
YEAR NEW ............................ 1985
MAXIMUM WORK SWING .................. 18-1/2
BAR CAPACITY ........................ 2-3/8
X-AXIS TRAVEL ....................... 6-1/8
Z-AXIS TRAVEL ....................... 20-1/2
SPINDLE SPEEDS ...................... 65 TO 3500 RPM
FEEDS ............................... 0.0001 TO 3.2000 IPR
CHUCK ............................... 8
NUMBER OF TURRET POSITIONS .......... 8
CNC CONTROL ......................... OSP 3000 L CNC
RAPID TRAVERSE ...................... YES
TAILSTOCK ........................... YES
TAPER IN TAILSTOCK .................. #5 MT
RS232 PORT .......................... YES
LUBE SYSTEM ......................... YES
SPINDLE MOTOR ....................... 20 HP
