> Clutch-brake set, warner electric size ep-250
Clutch-brake set, warner electric size ep-250

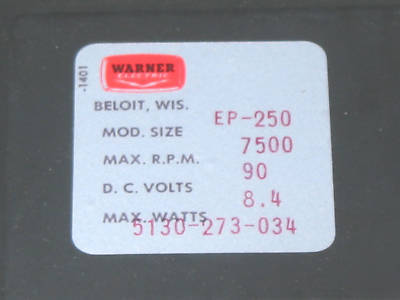

WARNER ELECTRIC, MOD. SIZE EP-250, 5130-273-034
THE INPUT IS A CLUTCH AND THE OUTPUT IS A BRAKE

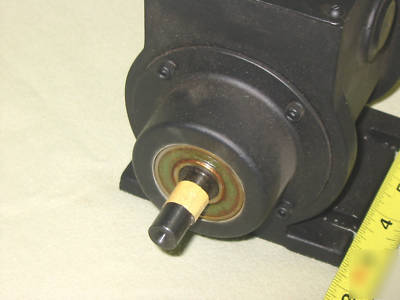

THE INPUT AND OUTPUT SHAFTS ARE BOTH 1/2" DIA.

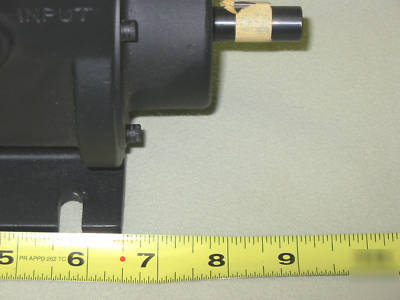

THE MEASUREMENT FROM THE MOUNTING SURFACE TO THE CENTER OF THE SHAFTS IS 2 1/4"

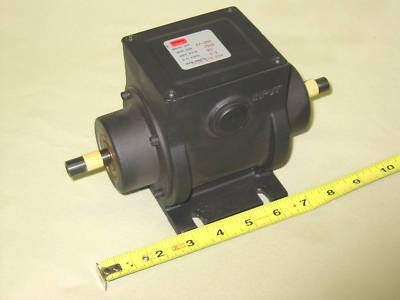

SHAFTS ARE 1 1/4" LONG, THE OVER ALL LENGHT IS 8-7/8", WIDTH IS 4 3/8"
Start-Stop, Power Applied Product: Couples two shafts together when DC power is applied to the clutch field magnet; output stops when DC power is applied to brake magnet
THIS CLUTCH BRAKE HAS NEVER BEEN USED.
