50"/136" x 312" leblond manual lathe

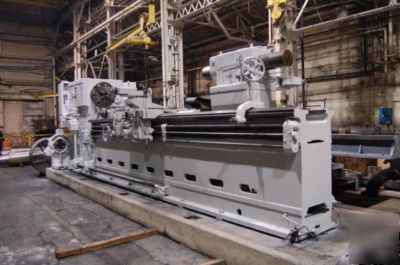

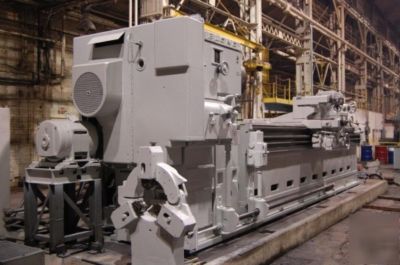

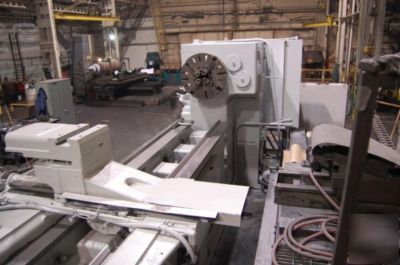

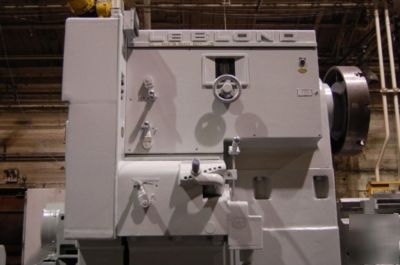

50"/136" x 312" Leblond Manual Lathe
Model: 4025-36 Sliding Gap Bed
Maximum Swing Over Bedways ........... 50"
Maximum Swing Over Carriage .......... 30"
Distance Between Centers ............. 192"
Maximum Swing Over Gap ............... 136"
Length of Gap ........................ 120"
Maximum Distance Between Centers ..... 312"
Tailstock Quill Diameter ............. 8"
Tailstock Quill ...................... #6MT
Tailstock Spindle Travel ............. 18"
Spindle Speeds: (36) ................. 6-600 RPM
Width of Bed ......................... 36"
Hole Thru Spindle .................... 3.0625"
Feeds (48) ........................... .004-250 IPM
Threading (48) ....................... 3/4 to 46 TPI
Motor HP (Maximum Capacity) .......... 75 HP
Motor HP ............................. 50 440v/3-Phase
Floor Space Bed Closed L x W x Ht .... 336" x 72" x 99"
Floor Space Bed Open L x W x Ht ...... 456" x 72" x 99"
57" Diameter Face Plate Type Chuck
Steady Rest, Roller Type 3"-13" Capacity
