Portable jib crane jib-cb-25-10-10, 250 lbs, 10' beam

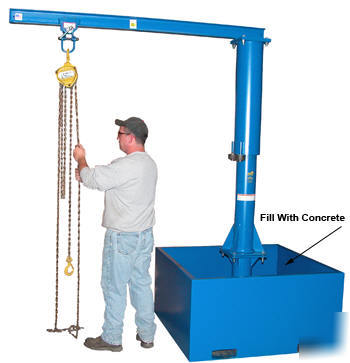

Portable JIB Crane JIB-CB-25-10-10, 250 lbs, 10' Beam
Model Number For This Listing: JIB-CB-25-10-10
Unique design allows for easy transportation of jib crane with fork truck
Standard base included with jib crane is not filled with concrete
Standard base includes instructions for proper filling with concrete
Base may be ordered pre-filled with concrete for immediate use (higher freight cost)
Base size is 42"W x 42"L x 18"H or 36"H (based on model ordered)
Base includes built-in fork tubes for transportation with fork truck
Fork tubes are 7 " wide x 2 " high usable
Fixed-length I-beam will pivot 360 for complete access
Upright vertical column bolts to base
Steel construction with blue painted finish
Not for use as a fork truck attachment
All available Vestil Models: (refer to other listings or call (***)-340-4887; Email - ****@hayestrading.com)
Optional concrete-filled counterbalance base with fork pockets - 18"H
Optional concrete-filled counterbalance base with fork pockets - 36"H
