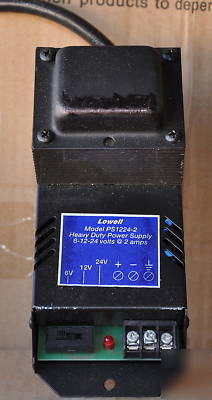

Lowell PS1224-2, 6 - 24 vdc switchable power supply
2 Amp output designed for continuous operation.
6V, 12V, and 24V selectable outputs.
Compact size for convenient installation.
Lowell s Model PS1224-2 is a heavy duty power supply
with a 2 amp output designed for continuous operation wherever
a reliable DC power source is specified. The compact
unit includes an LED power indicator for quick visual status
check. Outputs are selectable at 6V, 12V, and 24V using a
convenient slide switch. The PS1224-2 has a unique ventilated
steel housing for superior operation. The frame
includes three-sided barrier strip terminals with clamps for
fast connection and mounting holes for easy installation to a
wall or rackmount shelf Model L15-310E with pre-punched
mounting holes (order separately). The PS1224-2 has a 6
power cord with a NEMA 5-15 molded plug.
Heavy duty power supply shall be the Lowell Model PS1224-
2. The power supply shall be designed for continuous operation
and have a switch selectable output of 2 amps (nominal)
at 6V, 12V, and 24V. The power supply shall have a
ventilated chassis and LED status indicator. The power
supply shall have three sided barrier strip terminal connections.
The unit shall have a 6 power cord with a NEMA 5-15
molded plug. The power supply shall have a vented frame
and shall have holes for mounting onto a wall or rack panel.
The finish of the steel frame and housing shall be semi-gloss
