1997 okamoto acc-16-32 dxv programmable surface grinder

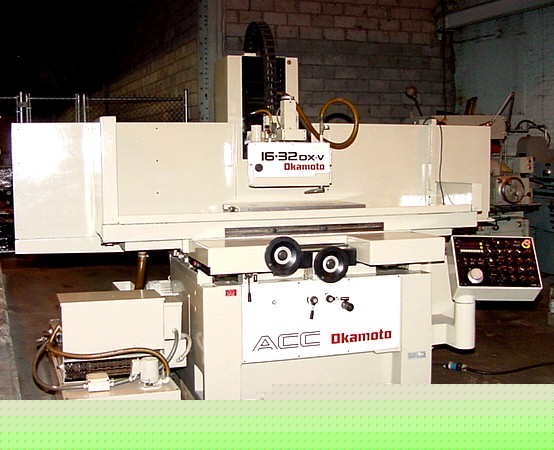

1997 OKAMOTO ACC-16-32 DXV PROGRAMMABLE SURFACE GRINDER
16" X 32" OKAMOTO "HIGH-PRECISION"
W/"DX" PROGRAMMABLE AUTO INCREMENTAL DOWNFEED
MODEL: ACC-1632DX-V S/N: 68450 NEW: 1997
NOMINAL GRINDING CAPACITY ..................... 16" x 32"
MAXIMUM HEIGHT UNDER STD. 12" WHEEL
TO TABLE SURFACE ................................. 21.5"
TABLE SPEED, INFINITELY VARIABLE .......... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ............ 38"
AUTO CROSS FEED INCREMENT ................ 0.002" TO .80"
AUTO CONTINOUS CROSSFEED ................... 4' TO 40' FPM
CROSSFEED, MANUAL, HAND FEED PER REV. ............. 0.25"
GRAD. OF HANDWHEEL ............ 0.001"
MAX. CROSSFEED, MANUAL .............................. 18"
AUTO INCREMENTAL DOWNFEED INCREMENTS .. 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE .............. 16" IPM
SPINDLE MOTOR .................................... 5 H.P.
HYDRAULIC PUMP MOTOR ............................. 3 H.P.
VERTICAL RAPID FEED & DOWNFEED MOTOR ............ .5 H.P.
WHEEL SIZE .............................. 12" X 1.5" X 3"
APPROX. MACHINE WEIGHT ........................ 8,800 LBS.
MACHINE FLOOR SPACE (L x W x H)......... 132" x 87" x 82"
HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED
"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE
-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS
-DIGITAL DISPLAY FOR VERTICAL AXIS
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING
"DXV" FACTORY INSTALLED OPTION:
-AUTO WHEEL DRESSER with COMPENSATION
16" X 32" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER
