Zmike laser micrometer 1210 silver 1 inch concentricity

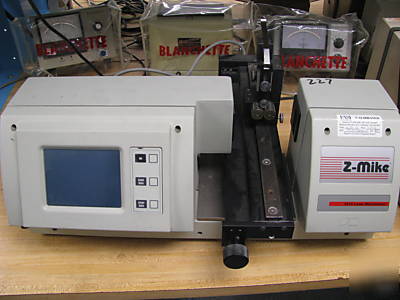

Zmike Model 1210 Silver Laser Micrometer
This unit is in very good working condition.

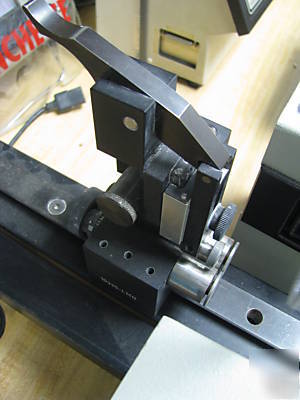

Gage has an attachment for concentricity measurement.
The below information was gathered from http:// /1200Page/zmike1200.htm
I do not warrant the information below, use it only as a guide.
Our 1200 Series Laser Bench Micrometers outpace the competition as the most accurate and simple to operate gauging systems in the world. These micrometers are the most accurate, provide excellent repeatability and resolution, and present the friendliest interface on the market.
Our 1200 Series micrometers contain a transmitter, receiver, processor electronics, touch screen, and key pad all in a single package. Z-Mike's system design uses a special collimator lens which incorporates our patented optics, enabling high accuracy in a short focal length. A thin band of high-speed scanning laser light projects from the transmitter to the receiver. A part placed in the beam casts a shadow, which becomes the starting point for measurement.
The receiver houses a collector optic, photodiode, and edge-sense circuitry. Through our patented edge-sensing process, signals from the laser light entering the receiver are used by the microprocessor to calculate the dimensions represented by distances between the shadow edges. The dimensional data is instantly displayed, or can be transmitted to a computer for further processing.
State of the art graphical user interface makes these gauges the easiest to use in the industry.
Multiple versions for any job provide a range of measurement capabilities from basic to enhanced features that help you meet any measurement task. All types of measurements are easily accessible from the front panel keypad or through the micrometers communications port.

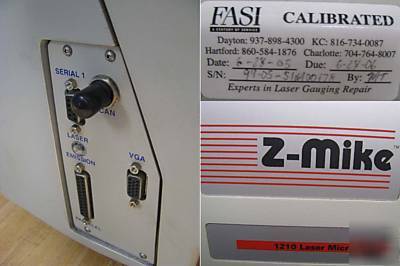

Bi-directional communications are provided via an RS-232 serial interface. Operators can send ASCII commands from a computer for automatic measurement and data collection.
Reduced sampling time results from simultaneous data analysis and real-time measurement while automatically outputting the results. You can configure the 1200 gauges for single, part,
or continuous on-demand measurements. All 1200 series laser micrometers easily interface with SQC processors for total data retention.
HeNe laser tube provides superior performance due to its circular, Gaussian energy distribution. HeNe achieves a higher level of measurement accuracy than less expensive diode sources.
0.010 t0 2.0 in. (.25 to 50 mm)
0.010 to 2.0 in. (0.25 to 50 mm)
Measurement Area Depth of Field
