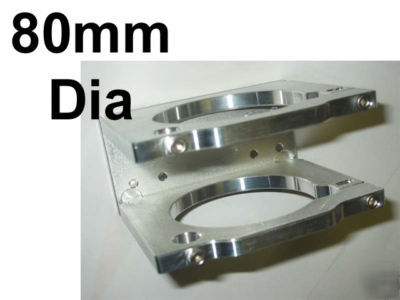

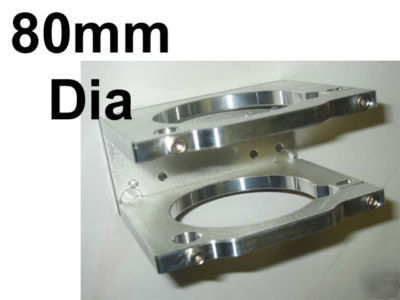

K2 cnc router - motor spindle mount bracket 80MM dia.
CNC Router Mount for 80mm Spindles
Made in USA 100% (Spindle Not Included)
This is a spindle mount that is design for applications like cnc cutting, jig of your own. The design uses 10-32 screws to hold in the router. The 6061 Aluminum material was machined on a Haas CNC Center Milling Machine.
CNC Routering, Jig Up your work, Vertical Holder for vertical right side up jobs.
New Billet Aluminum 6061 Made with HAAS CNC
Pre Drilled .5 shaft hole , 10-32 set screw.
Use for holding shaft for your design dust collection vacuum holes (not included or available)
Aluminum 6061- .375 inch thick aluminum for the mount.
2.5" x 1" (4 qty) 10-32 thru holes. K2 old configuration.
4.0" x 1 (4 qty) 10-32 thru holes. K2 new configuration.
Holes are 2.5" x 1" and 4" x 1"
