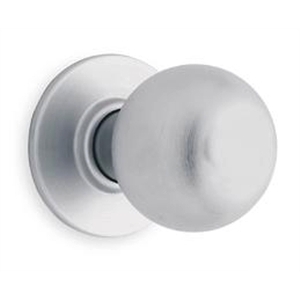

Schlage D10S orb 626 passage knob
Extra heavy duty lockset ideal for hospitals/health care facilities, offices, factories, public buildings, religious, retail, government facilities, & especially schools/universities.
Tested to exceed 3,000,000 cycles, greatly exceeding the 800,000 cycle ANSI Grade 1 requirement.
Keying: KD standard, 6 pin cylinder keyed to 5.
Exterior Trim Knobs & Door Widths: Wrought brass, bronze or stainless steel trim. For doors 1-3/8" to 2" thick.
Exterior Trim Levers & Door Widths: Pressure cast zinc, and plated. For doors 1-5/8 to 2-1/8 thick.
ANSI A156.2 Series 4000 Grade 1
UL / cUL: listed for A label single doors, 4' x 8'.
Latch: 1/2" throw steel latch bolt with 1" housing.
All stocked in 626 (Brushed Chrome) finish
Chassis: Cold rolled steel that is corrosion treated for normal atmospheric conditions.
Vandlgard Lever Extra Features
Meet handicap accessibility codes.
All ND-Series lever locksets are nonhanded.
Independent heavy duty spring cages for effective lever support.
Thru-bolted mechanism for positive interlock to door.
Exceeds ANSI A156.2 Series 4000 Grade 1 locked lever torque requirements.
Free-wheeling lever eliminates the ability to stand or exert excessive force on the end of the lever to resist vandalism.
