> Curtis battery fuel gauge indicator meter 24 vdc 900R
Curtis battery fuel gauge indicator meter 24 vdc 900R

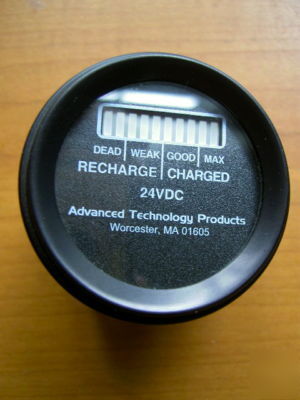

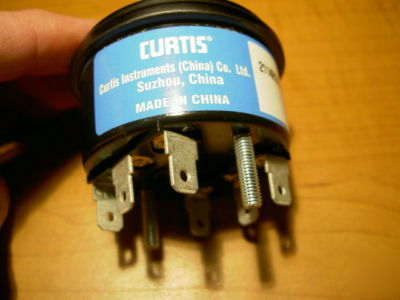

These meters were custom created by Curtis Instruments. They are very similar to the Curtis 900R Battery Fuel Gauge, but with a custom faceplate that displays the lead acid battery pack s state of charge using multicolored LEDs. This Curtis Meter is a 900R 24 VDC with a customized face plate. Please click on the Curtis 900R Data Sheet for technical specifications.
The Curtis Model 900R battery fuel gauge (state-of-charge meter/battery indicator) basic spec sheet
(Please Note: these are NOT 900R s, but similar custom units)
http://store.kta-ev.com/Curtis_900R_Data_Sheet.pdf
10-element LED digital bar graph display, indicating from "DEAD" to "MAX". Black bezel, black plastic face. Output determined by measurement of 28 minute moving average of pack voltage.
2.30" diameter bezel X 2.15" D. Mounts in standard automotive 2-1/16" hole.
Multicolored 10-bar (5 green, 3 yellow, 2 red) LED displays
The MAX LED illuminates only when the battery is properly
Recognizes improperly charged battery.
The manual is available here: (page 8 has the same basic operating instructions)
http://store.kta-ev.com/Curtis900RManual.pdf
