1998 karstens cnc id/od 4 axis cylindrical grinder

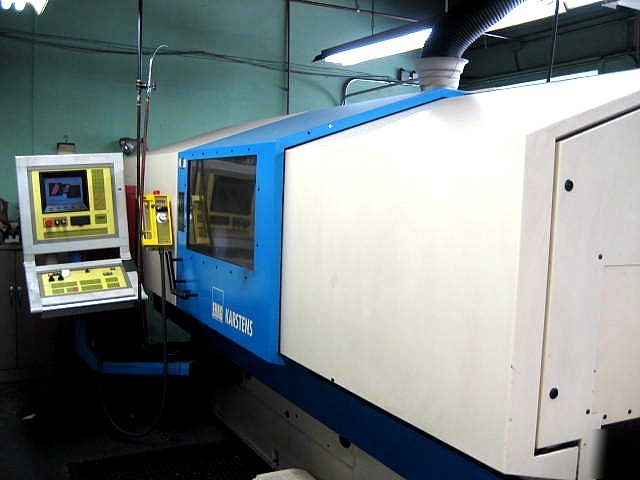

1998 KARSTENS CNC ID/OD 4 AXIS CYLINDRICAL GRINDER
14" x 40" KARSTENS CNC UNIVERSAL I.D./O.D.
FOR EXTERNAL/INTERNAL GRINDING WITH CONTINUOUS PATH CONTROL
EQUIPPED WITH PROGRAMMABLE "B" & "C" AXES OPTIONS
Total installed power with 10 HP spindle motor: 14.5 HP
Net weight of machine, approximately: 10,400 Lbs.
Grinding Wheel arrangement left hand
Spindle in anti-friction bearings, life time lubricated.
Grinding wheel width, up to: 4"
Grinding wheel speed 7000 sfpm
Coarse adjustment of wheelhead on air cushion,
clamping with spring-load, unclamping pneumatically
(no hand tools required). Manually swivelling of wheelhead
after unclamping by operating one lever.
Live and dead spindle in anti-friction bearings.
Work drive infinitely programmable 25-600 RPM
Workhead can be swiveled on base plate
Spring tension adjustable up to: 176 lbs.
Holder for the dressing tool for diamond with shaft MT 0
or diamond dressing blade, (without diamond).
KARSTENS-CNC CONTROL TYPE BWO 900
Modular designed continuout path control
in powerful RISC-processor technology.
Axis interpolation possible in different software channels
Comfortable operation guidance by integrated function keys,
softkeys and data input by numerical key board.
Color-LC-Display, VGA graphic mode
Approaching cycles for automatic setting of reference
points, for dressing and grinding cycles.
NC programming in accordance to DIN 66025 via keyboard
or data in-and output via serial interface (RS232C).
Wheel guard for grinding wheels up to 4" wide,
Grinding wheel flange with grinding wheel 20" dia.
Balancing arbor and extractor screw for wheel flange.
Fine setting device for upper table, including dial
1 Instruction/service manual, complete with parts list
Drive System Brushless AC servo motor
interpolation with another main axis
36,000 impulses per revolution
Wheel guard for second grinding wheel (right side)
to accomodate grinding wheels 16" x 3.150" x 5"
grinding wheel wear down to 12" possible. This would
offer the option to have a wheel in degrees for
face grinding... grinding length 26"
Rear mounted internal grinding attachment,
Spindle mount for dia. 3.150" x 6.300"
with reductions for dia. 2.362"
Internal grinding spindle type UJ 60 x 250R
including operating tools and drive belts
with 1-1/2" dia. pulley, 15,900 RPM,
and 3 threaded bolts for mounting grinding
stones 1", 1-3/16" and 1-1/2" dia.
one collet clamping arbor with one collet
Second dressing device, essential to fully
Wheel mounted for wheel dia. 20" or 16"
clamping width 1-3/16" to 3.150", bore 5"
Automatic Paper Band Filter Unit
Voltage stabilizer 750 VA for CNC Control
system to compensate fluctuations in the mains
Halogen work light 70 watt/24 volt, including
transformer and mounting bracket
Operating Satellite for Karstens CNC Control BWO
** Inspect Under Power in Farmingdale, N.Y. (45 Minutes
