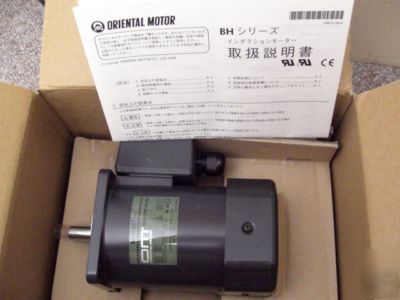

Oriental motor BHI62ST-a induction motor
100 M or more when 500 VDC is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity.
Sufficient to withstand 1.5 kV at 50 Hz and 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity.
Temperature rise of windings are 126 F (70 C) or less measured by the resistance change method after rated motor operation with connection to aluminum heat radiation plate (9.06 in. x 9.06 in.) (0.20 in. thickness).
Built-in thermal protector (Automatic return type). Operating temperature, open: 302 F 9 F (150 C 5 C) close: 204.8 F 27 F (96 C 15 C)
14 F ~ 122 F (-10 C ~ 50 C) (nonfreezing)
