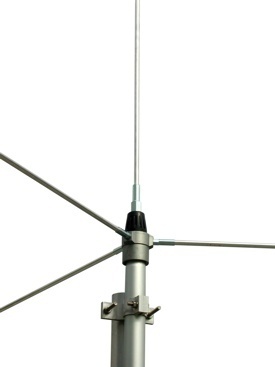

The gp 3-e base antenna by sirio
BASE STATION ANTENNA, OMNIDIRECTIONAL
SUITABLE FOR LAND AND MARINE SERVICE
SIDE MAST MOUNTING ALLOWED BY OPTIONAL BRACKET
FEQUENCY RANGE: TUNABLE 135...175MHz
RADIATION: (H-PLANE): 360 DEGREE OMNIDIRECTIONAL
RADIATION: (E-PLANE): BEAMWIDTH @ -3dB = 67 DEGREE
BANDWIDTH: @ SWR < 2: SEE DIAGRAM
MAX POWER: (CW) @ 30 DEGREES C: 200 WATTS
GROUNDING PROTECTION: ALL METAL PARTS ARE DC GROUNDED, THE INNER CONDUCTORS SHOWS A DC SHORT
CONNECTOR: UHF FEMALE, GOLD PLATED CENTRAL PIN
MATERIALS: ALUMINUM, COPPER, NYLON
WIND LOAD/RESISTANCE: 28 N @ 150 Km/h/ 150Km/h
RADIAL LENGTH: (APPROX): 530mm
