Southbend sles/20SC convection oven, electric, double d

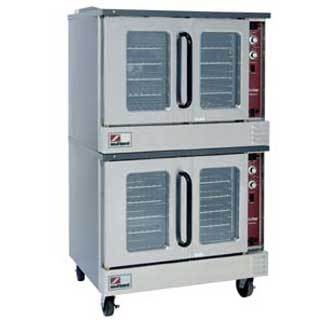

Convection Oven, Electric, Double Deck, Silverstar Series
1 year limited parts and labor -view pdf
SilverStar Convection Oven, Electric, double-deck, standard depth, solid state controls, with 6" high legs, s/s front, top & sides, interior light
* 12 kW high efficiency heating elements
* Double deck convection oven is 65 in height
* Exterior Finish: Stainless steel front, top and sides, aluminized steel back
* Electrical System: Terminal connections are located below oven section and are accessible from the front of the oven.
* These sheath type electrical heating elements located at the rear of the oven function as a single heating unit with a combined rating of 12 kW per deck. Available voltages include 208. 240, 380, and 480 VAC single or three phase, 50/60 Hz.
* Ovens equipped with 480VAC single or three phase heating elements use 240V controls and motors and do not require separate electrical lead wires.
* Rack and Rack Guides: Heavy-duty removable wire rack guides spaced on 1 5/8" centers offer 11 different rack positions.
* 5 wire racks provided with each oven.
* Blower Fan and Motor: 1/2hp, 2-speed motor, 1725/1140
* Control Panel: Located of front, at right side of oven, away from heat zone. Removable panel opens downward for easy servicing.
* Legs: 6" black legs standard.
* Install under vented hood.
* Check local codes for fire and sanitary regulations.
