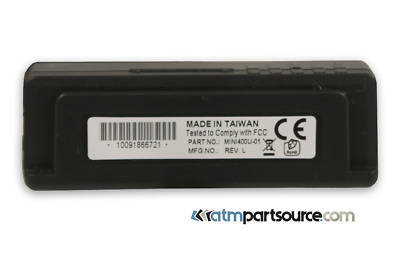

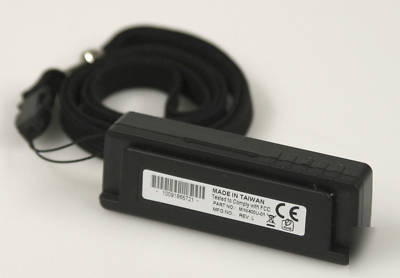

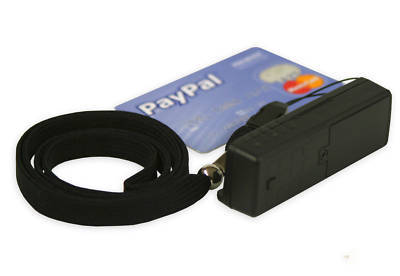

MSR400(MINI400) portable magnetic stripe reader
MSR400 USB (mini400) is built in RS232 and USB interface Portable Data Collector. Different interface can be interchanged by just switching the cable. It's a rechargeable battery-powered portable magnetic swipe reader, which is specially designed for magnetic stripe data collection at anytime and anywhere without computer. Data is read from the card and kept into the memory then downloaded to the computer.
512 K bytes memory for storing 3000 data
Triple track version can collect all 3 tracks data
Rechargeable battery lasts 50,000 swipes
Charged by power adapter (5v /110~240v) or USB only 1 hour to Full
Data downloadable to the computer via RS232 or USB
Auto Power Off /Switch Control/Really Control set by user
Transfer data to MSR206 directly
Government: Driver Licence, Health Card, Government ID
- Track 1 210 bpi, 79 Alphanumeric Characters
- Track 2 75 bpi, 40 Numeric characters
- Track 3 210 bpi, 107 Numeric characters
- Memory size : 512K stores up to 3000 records
- Date: YY/MM/DD ( 2002/04/12 => April 12, 2002 )
- Time: HH:MM:SS (19:08:35 => 7:08:35pm)
- Week: Sun.=>1, Mon.=>2, Tue.=>3 Wed.=>4, Thurs.=>5, Fri.=>6, Sat.=>7
- Example: 2002/04/12 19:08:35 6 => April 12, 2002, 7:08:35pm, Friday
Interface: RS-232, Half-Duplex. 8N1, 9600 bps
Speed: card speed through the unit may vary from 3 ~50 ips
- Dimensions : L 3.23 x W 0.75 x H 1.0 inch ( L 8 x W 1.5 x H 2.5 cm )
1 Connector Cable for Computer
1 MSR400 Software CD and Manual
