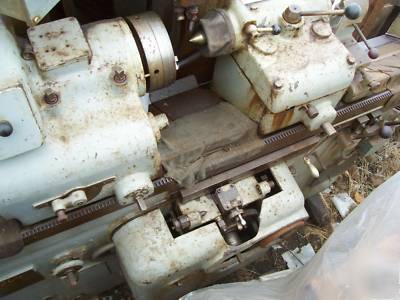

Jones & lamson #tg 1245 thread grinder
JONES & LAMSON #TG1245 AUTOMATIC THREAD GRINDER SPECIFICATIONS Max. work diameter 12" with 20" wheel, 13" with 16" wheelMax. swing over table 21"Maximum length between centers 45"Maximum continuous thread length at one setting 18"Grinding wheel speeds from 1,000 to 2,600 RPM(35) work speeds from .24 to 100 RPM; hole thru spindle 2-5/8"Pitches from 2 to 48, multiple threads up to quadrupleMax. helix angel 30 degrees LH, 25 degrees RHMax. taper 3" per ft. (in 6" length)Motors 5 HP 230 volt/3/60 electrics, 1.5 HP and .5 HP both 220/440/3/60 electrics.Dimensions approx 116" x 100" x 75" highNet weight approx 12,000 lbs.Serial #120407Equipped with Dresser #574
