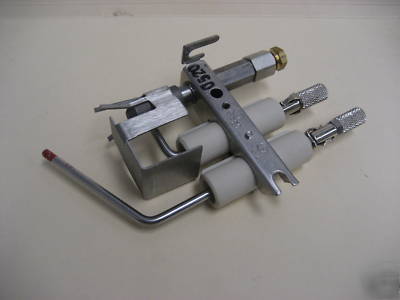

Honeywell Q179A1035 flame rectifier pilot
Flame Rectifier Pilot with a 0.025 in. dia. Orifice and 45 degree right hand port and tip style.
Q179A is a gas pilot assembly (with a flame electrode rod) and ignition electrode, making it suitable for applications requiring an interrupted or intermittent electrically ignited gas pilot burner.
Primary aerated type burner is equipped with stainless steel fins that provide the proper flame rod area to ground area ratio for maximum flame signal and flame stabilization.
Stainless steel electrode(s) are mounted in ceramic insulators, which permit electrode adjustment.
Rajah connectors facilitate disconnecting (A1126 has terminal screws).
Bracket permits side or end mounting.
Flame Rectifier Pilot with a 0.025 in. dia. Orifice and 45 degree right hand port and tip style
For Intermittent or Interrupted Ignition
0.025 in. dia. (0.635 mm dia.)
4 5/8 in. high x 1 11/16 in. wide x 3 in. deep
118 mm high x 43 mm wide x 76 mm deep
Flame electrode and ignition electrode
Q624 or other suitable ignition transformer.
