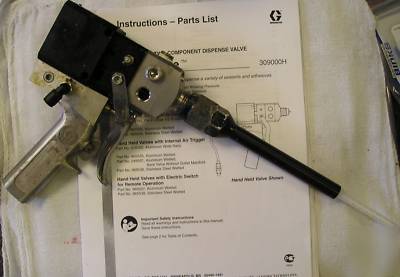

Graco 2K-ultra lite dispense valve model#965536
AIR OPERATED, TWO COMPONENT DISPENSE VALVE
For use with disposable mixers to dispense a variety of sealants and adhesives.
3000 psi (20.7 MPa, 207 bar) Maximum Fluid Working Pressure
120 psi (0.84 MPa, 8.4 bar) Maximum Air Inlet Pressure
HAS BEEN SERVICED AND TESTED AT 3000 PSI WITH NO PROBLEM

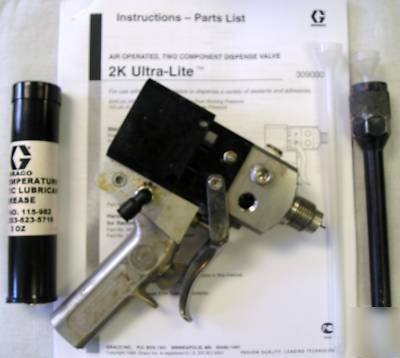

ALSO INCLUDES MANUAL/ PARTS LIST AND 2 MIX TUBES AND A RESTRICTOR FOR THINNER MATERIAL FEED PLUS GRACO HIGH TEMP LUBE
Hand Held Valves with Internal Air Trigger
Part No. 965536, Stainless Steel Wetted
The wide ratio 2K-UL valve has two features: a center inject nozzle in the nose piece and
a shower head tip. The features are helpful in applications when the mix ratio volume is
greater than 10:1, specifically when minor volume is a lower viscosity than major volume.
Frequent cleaning intervals are required to maintain the center inject nozzle and shower head tip.
The valve operation is such that there are only two
valve conditions: either fully open or fully closed.
The valve is opened and closed by the internal air
control valve. Trigger the gun to open the valve.
Release the trigger to close the valve.
The output mix ratio of your proportioner can be
checked by dispensing the two fluids separately out of
weighed and the weights divided to get the mix ratio by
