Allegro ce data collector w.prosurvce ts&roading vgcond
The Allegro CE is a rugged Field PC featuring Windows Mobile 5, an Intel StrongARM 206 MHz
processor, and a large VGA display.
rdura miscellaneous data collectors case
Waorks with Carlson Explorer, XYZworks Field Book, Allegro, FC2000 / 1000, Rangers, etc aorks with Carlson Explorer, XYZworks Field Book, Allegro, FC2000 / 1000, Rangers, etc
Allegro CE Data Collector with Carlson 2.1212.0409 SurvCE SOFTWARE - for Total Stations and Roading version 1.50 and 1.01
Used with Leica TPS series. Registered modules TS and Roads- for GPS and Robotics you have to register
Comes with NiMH battery pack and charger. Hand strap. Seco Cordura case. We just charged it and it is in perfect working order.
Created especially for Leica Geosystems, the AllegroCE is one of Leica's most used in remote controllers/data collectors . With battery built in, the totally cableless AllegroCE is still one of the most compact convenient data collector on the market . The Allegro is built to withstand harsh field environments. It was designed to be light weight, comfortable to hold, and easy to maneuver while working in less than ideal conditions . The Allegro's ergonomic shape and smooth edges make it easy to hold, maximizing comfort and usability in the field.
The polycarbonate ABS material is rugged shock resistant and chemical resistant . Gaskets completely seal the case from water and dust. The Allegro can be submerged and even floats ! It weighs less than 2lb. and the weight distribution is carefully balanced . There are no tools required to access the batteries and the PC card
The Allegro CE features the Intel StrongARM 206 MHz processor, a large The Allegro CE features the Intel StrongARM 206 MHz processor, a large high visibility l/4 VGA chemical resistant. It withstands a five-foot drop and six-foot submersion test, and even floats. Large Keyboard and Superior
Layout Makes Data Entry Fast and Accurate
The keys are large enough to be used with gloved hands.
When combined with Carlson SurvCE and todays' total stations and GPS, it is a data collection system that is unmatched in the industry.
THIS SALE IS FOR: (1) Allegro CE Data Collector w/ SurvCE Software for Total Station and Roading surveys in very good condition.Comes with charger, hand strap and user manual. Battery is almost new and is holding power like a new logger.

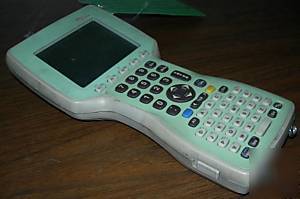

Price $1295.00 PICTURES ARE OF THE ACTUAL ITEM FOR SALE.
MORE SPECIFICATIONS ABOUT ALLEGRO CE (FROM MANUFACTURER)
Rugged, Field-Ergonomic Case Design
Do not let the attractive design fool you. The Allegro is built to withstand the harshest field environments. It is lightweight, comfortable to hold, and easy to maneuver while working in less that ideal conditions. The polycarbonate ABS material is rugged, shock resistant, and chemical resistant. It withstands a five-foot drop and six-foot submersion test, and even floats.
Large Keyboard and Superior Layout Makes Data Entry Fast and Accurate
The keys are large enough to be used with gloved hands. Numeric keys are located in the center of the keyboard for easy access. Twelve function keys are available.
Fast Process for Superior Performance
Intel's StrongARM SA1110 206 MHz processor provides outstanding speed and performance while running Windows CE programs.
Large Non-Glare Display with Touchscreen
The -VGA display with non-glare touchscreen offers 18% more viewing area than comparable units, making applications and data clear and easy to see especially outdoors. An adjustable backlight provides visibility in low light condition, and a display heater allows the Allegro to operate in cold temperatures.
Two standard 9-pin D RS-232C serial ports and an IrDA (infrared) port allow you to connect your instrument or PC using a standard serial interface or through the optional USB Power Dock.
A standard rechargeable nickel metal hydride battery pack (NiMH) is included. During typical use, you can work 12 to 20 hours between charges. There is an intelligent charging circuit in the Allegro to properly charge the NiMH batteries without over-charging them. A dedicated standard external DC power input jack is located on the top of the Allegro. A universal AC power adapter is included.
Plenty of Memory and Secure Data Storage
32 MB of non-volatile disk storage space is included. Data is secure without battery backup. A user-accessible PC card slot allows you to add mass storage and I/O capabilities to the Allegro. Type I and Type II ATA Flash and SRAM cards, or input/output device cards can be used.
For more ans specific info and specs please check For more info re.ProSurv CE visit
