Wiltron 350 2MHZ phase meter detector - accuracy to 1MV

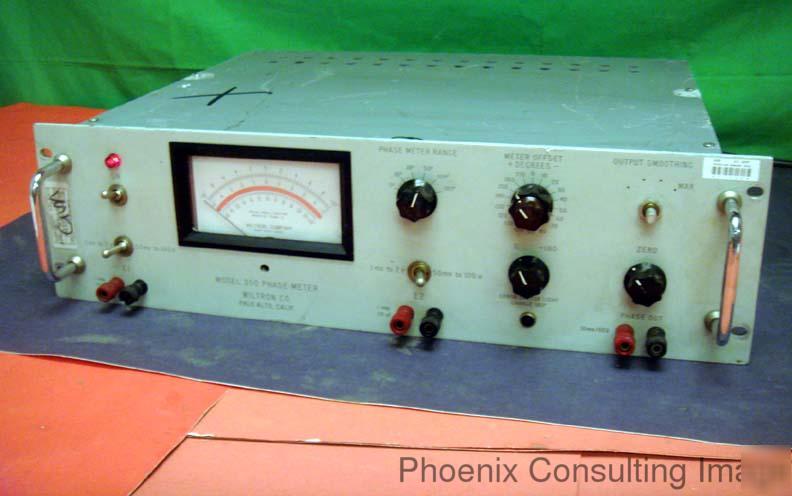

WILTRON 350 2Mhz PHASE METER DETECTOR - Accuracy to 1Mv
Save $$$ right here at GetThatPart !
Note that full specs are attached - just expand the picture to full size.
The 350 Phase Meter has a frequency range of 10Hz to 2MHz. 1 mV to 2 V rms or 50 mV to 100 V rms in two switch selected ranges. Input impedance of 1 Mohms shunted by 26 pF. DC voltage output is proportional to measured phase angle at 10 mV/degrees. Accuracy of phase out signal of (0.1 degree + 0.3%) of phase angle measured full scale.
Option 1 = Rear Input Connectors in parallel with front connectors (input capacity approx. 80 pf) Option 2 = Rear Output Connectors in parallel with front output of analog voltage proportional to phase
CALL US with questions - Our business line is (***)-374-1261
