> Aro drum pump model 650606
Aro drum pump model 650606
The pump has been tested and does work!

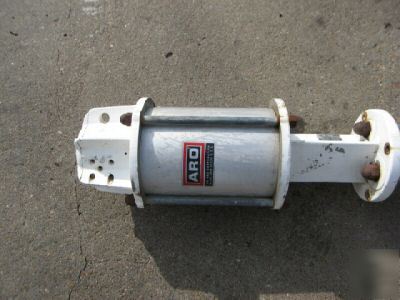

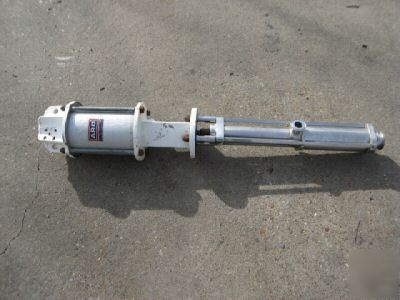

ARO QKD-Series Pneumatic Piston Pump. Model: 650606. S/N: A313-1
Pump capacity: 12 gpm at 1000 centipoise.
Pneumatic 6 air motor, ratio: 8 to 1.
Recommended max. inlet air pressure 150 PSI 10 bar produces max outlet working pressure of 1200 PSI 150 bar
Two-ball style pump designed to transfer medium viscosity fluids; typically in
the range of 1,000 to 20,000 centipoise (from 1 to 20 pascals).
Pump shaft dimensions: 5 diameter x 25 L. Food-grade stainless steel.
Pump inlet/outlet: 1 tri-clamp
Overall dimensions: 8 diameter x 46 L.
