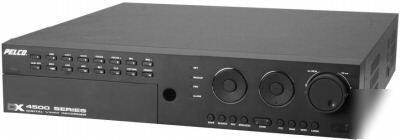

Pelco DX4508-1500 DX45081500 dvr digital video recorder
Manufacturer: Pelco Model/Part #: DX4508-1500
Pelco DX4500 & DX4600 Series Digital Video Recorders
Although more than one model number is noted below, only one is included in this listing. Be sure you know which model you are looking at before you make your purchase. Additional model numbers are provided for comparison purposes only. You can simply search the Surveillent store for these exact models.
The Pelco DX4500/DX4600 Series offered by Surveillent is a fully featured and fully affordable entry-level digital video recorder (DVR). The DX4500/DX4600 Series is the next generation in DVRs. Equipped with an embedded operating system, it offers camera capacity, features, and functionality exceeding the other DVRs.
The DX4500/DX4600 is designed for the entry-level market that requires 8 or 16 camera inputs; greater internal hard drive storage capacity; fast frame rate recording; and powerful playback, search, and export capability. The DX4500/DX4600 not only replaces the traditional VCR and multiplexer combination, but it also offers the benefits derived from the latest in digital video processing.
8 or 16 Channel (Camera) Digital Video Recorder
Up to 704 x 480 (NTSC), 704 x 576 (PAL) Recording Resolution
Up to 480 Images per Second Recording Rate
Up to 3 TB of Hard Drive Storage
Channel Resolution, Quality, and Frame Rate Settings Configurable
Picture-In-Picture for multiple screen Live and Playback Video
Remote Client with Administration Functions
Support for Continuous, Motion, Alarm, and Scheduled Recording
Local and Remote PTZ Control
Up to 4 Audio Inputs and 1 Audio Output
Pre- and Post-Alarm Recording
Up to 16 Alarm Inputs and Up to 4 Relay Outputs
Main Monitor for VGA or Analog Display, Analog Spot Monitor
Multilingual On-Screen Display
USB, CD-RW, or DVD RW for Video Export (see specific models)
Event Notifications by E-mail, Emergency Agent, or Sounder
Time/Date, Bookmark, Event, and Pixel Search
-1000 = 1000GB (or the same as 1TB)
-1500 = 1500GB (or the same as 1.5TB)
-2250 = 2250GB (or the same as 2.25TB)
Model Numbers: (8 Camera Inputs, 120fps, No CD or DVD included)
Model Numbers: (8 Camera Inputs, 120fps, CD-RW included)
Model Numbers: (8 Camera Inputs, 120fps, DVD-RW included)
Model Numbers: (16 Camera Inputs, 240fps, No CD or DVD included)
Model Numbers: (16 Camera Inputs, 240fps, CD-RW included)
Model Numbers: (16 Camera Inputs, 240fps, DVD-RW included)
Model Numbers: (8 Camera Inputs, 240fps, CD-RW included)
Model Numbers: (8 Camera Inputs, 240fps, DVD-RW included)
Model Numbers: (16 Camera Inputs, 480fps, CD-RW included)
Model Numbers: (16 Camera Inputs, 480fps, DVD-RW included)
Please be sure to visit the manufacturer s website for the most up-to-date information.
Pelco is the arguably the leader in the CCTV industry. They continue to raise the bar when it comes to features versus price point and their latest DX4500 & DX4600 Series of DVR s are no exception. These units have all of the most desirable features in a DVR and they are priced to saturate the marketplace. Embedded O/S, MPEG-4, high camera frame rates, audio recording, pixel search (in DX4600 Series) and up to 4CIF recording programmable per camera makes shows you why Pelco is the leader. You will make the right choice with Pelco and the best choice with the DX4500 or DX4600 Series of DVR s .
