New spectralert SP2R1224MC strobe alarm

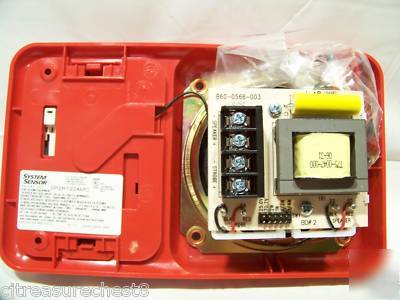

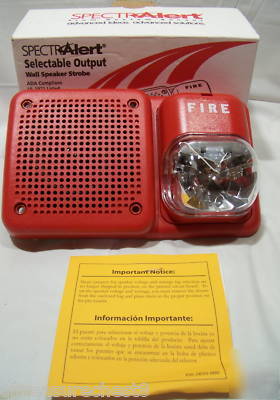

System Sensor SpectrAlert SP2R1224MC Red Wall-mount Speaker with Selectable Output Strobe
The SpectrAlert SP2R1224MC is a red wall-mount speaker with built-in Selectable Output strobe that self-adjusts for either 12 or 24 volt operation.
SP2 and SP3 Series Speaker/Strobes offer enhanced features that include the widest range of candela options available, the capability to self-adjust for 12 or 24 volt operation, and the fidelity sound quality expected from SpectrAlert speaker technology.
SpectrAlertR Selectable Output Speaker/Strobes offer average current draws that are not only lower than conventional fixed-candela SpectrAlert products, but also lower than similar selectable candela products. In addition, the broad frequency response range and low harmonic distortion provided by SpectrAlert speaker technology provides an accurate and intelligible broadcast of evacuation messages.
SpectrAlert Selectable Output Speaker/Strobes offer a variety of installation-friendly features, such as the ability to mount to a 4" x 4" x 2-1/8" back box without the need for an extension ring. Also, with the field-reversible strobe, the speaker/strobe may be either left- or right-mounted to avoid potential obstructions.
SpectrAlert Selectable Output Speaker/Strobes offer the broadest range of candela options. In addition, the 15 cd and 15/75 cd options can operate on either 12V or 24V, with no setting required; the device recognizes the applied voltage and self-adjusts to the correct setting automatically. The speaker voltage, either 25.0 or 70.7, and power tap settings, , , 1, or 2 watt, are field-selectable.
SpectrAlert Selectable Output Speaker/Strobes incorporate the same stylish, low profile design as the conventional SpectrAlert products, for a consistent and aesthetically pleasing appearance across the entire product line.
* Fidelity sound quality (SP2)
* Operates on either 12V or 24V
* Widest range of candela options:
* 12V: 15 and 15/75 candela options
* 24V: 15, 15/75, 30, 75, and 110 candela options
* 25.0 and 70.7 volt speaker with four field-selectable power taps
* Field-reversible strobe for left- or right-mounting
* Synchronizable with MDL Sync Circuit Module
* Voltage: 12 or 24VDC and FWR unfiltered (strobe); 25.0/70.7 Vrms (speaker)
* Candela: Selectable: 15, 15/75, 30, 75, 110 cd
* Operating Voltage Range: 12V: 10.5-17V; 24V: 20-30V (strobe)
* Operating Voltage Range with MDL: 12V: 10.5-17V; 24V: 20-30V (strobe)
* DC Max. Operating Current - Strobe: (see Data Sheet)
* FWR Max. Operating Current - Strobe: (see Data Sheet)
* Power: 1/4, 1/2, 1, and 2 watts
* Frequency Range: 100 to 10,000 Hz
* Mounting: 4"x4"x2-1/8" back box
* Dimensions: 4-7/8"x8-1/4"x2-1/4"
