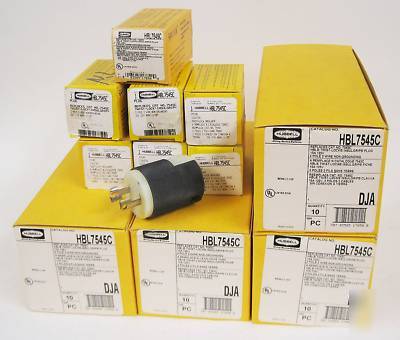

New hubbell HBL7545C twist lock plugs lot of 47 in box
Item Title: Twist Lock Insulgrip Plugs
* Poles and Wires 2 Pole, 2 Wire Non-Grounding
* Cord Dia. .220 in. - .360 in.
* Blade Holder Material Natural W hite Nylon
* Terminal Retainer Material Clear Polycarbonate
* Housing Material Black Nylon
* Cord Clamp Material Natural (White) Nylon
* Terminal Clamp Material Cold Rolled Steel-Nickel-Plated
* Terminal Screw Material #8-32 Brass
* Cord Clamp Screw Material Steel, Zinc Plated
* Body Holding Screw Material Steel, Zinc Plated
* Dielectric Voltage Withstands 2,000V Minimum
* Temperature Rise Max 30 C Temperature Rise @ Full Rated Current after 50 Cycles of Overload @ 150% of Rated Current @ a Power Factor of 75%
* Operating Temperatures Max Continuous 75 C, Min -40 C (w/o Impact)
* Terminal Identification Terminals Identified in Accordance with UL498 (X, Y, Z, White, Green)
* Terminal Accommodation 18/2 - 16/2 Types SV, SJ
* Flammability UL 94 HB or Better
