> 8 hhp IT3800 barcode readers + 4 holders

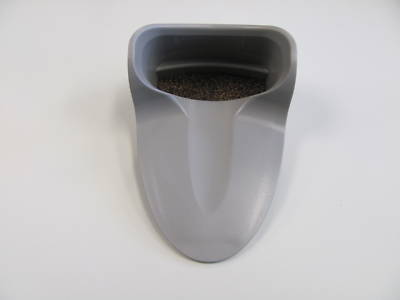

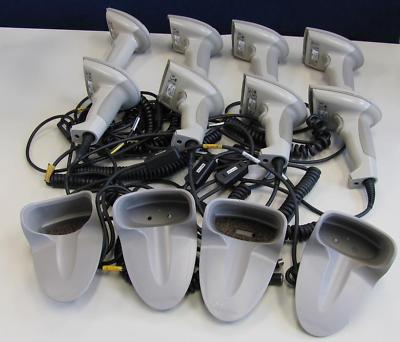

8 hhp IT3800 barcode readers + 4 holders

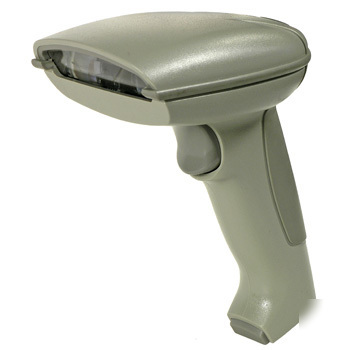

HHP's most popular Linear Imager
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: From 1 in. (2.5 cm) to 8 in. (20.3 cm) on medium density codes
Reading Width: 5 in. (12.7 cm) code width at 7 in. (17.8 cm) distance
Resolution: 3 mil. at 3.5 in. (8.8 cm) distance
Horizontal Velocity: 2 in. (5.1 cm) per second
Scan Rate: Programmable to 270 scans per second
Decode Rate: 270 decodes per second
Housing: Polycarbonate/ABS blend, UL 94V0
Power Requirements: 5Vdc + 10% at scanner (-11 model: 5 -12Vdc + 10%)
Noise Rejection: Maximum 100mV peak to peak, 10 to 100 kHz
Operating: +32oF to +122oF (0oC to +50oC)
Storage: -4oF to 140oF (-20oC to +60oC)
Mechanical Shock: Operational after 50 drops from 5 ft. (1.53 m) to concrete
Ambient Illumination: 0 - 70,000 lux
ESD Protection: Functional after 15kV discharge
Vibration: Withstands 5G peak from 20 to 300 Hz
Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, UL, cUL listed, T V
MTBF: per MIL-HDBK-217F Ground Benign exceeds 100,000 hours
Symbologies: Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN,
China Postal Code, RSS. PDF417 in 3800 PDF-12 model.
Interfaces: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, Apple ADB, USB, TTL level RS-232, wand
emulation mode, TTL level Serial Wedge, and includes (HHLC) non decoded laser compatible output. IBM 4683/93 and OCIA retail
terminals in 3800 LR-11 model. True RS-232 in 3800LR-13 model.
* 1 Key board splitter adapter cable is included!
