Vestil gas powered all terrain pallet truck all-t-2-gpt

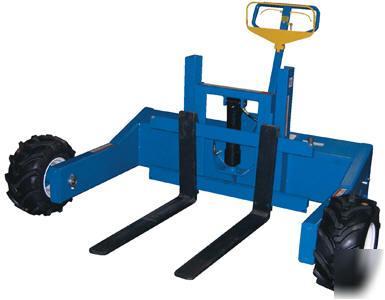

Vestil Gas Powered All Terrain Pallet Truck ALL-T-2-GPT
Gas Powered All Terrain Pallet Truck
Capacity (lbs) @ 24" Load Center
All-terrain pallet truck with gas-powered traction drive system, great for moving heavy loads over rough terrain, features 2000 lbs. or 4000 lbs. capacity @ 18" load center, unit also includes powered fork lift and lower, steel construction for years of dependable use with blue painted finish.
Briggs & Stratton 6HP gas-powered engine to power hydrostatic traction drive and fork lift
Handle with variable speed forward / reverse control and safety kill switch
Hydrostatic transmission with hand-operated, Forward and Reverse control
Powered fork raise and lower controlled with hand lever
Fork service range is 2-5/8" lowered to 12" raised
Forged steel forks are 4" wide x 36" long and painted black
Adjustable fork width between 8" minimum and 36" maximum
Usable width between outriggers is 50"
Overall size of unit is 79" wide x 68" long (including handle)
Pneumatic steer wheels are 13" diameter x 4" wide each
Drive wheels are 18" diameter x 8-1/2" wide each
Wheels include sealed bearings for outdoor use
More Gas Powered All Terrain Pallet Trucks
Complies with ASME B56.1-2004
Click the above for Approval Drawing PDF. Click the for Parts List PDF. (If you have trouble viewing the PDF in the browser, try "right clicking" the icon and clicking "save target as" to save the PDF to your preferred location.)
