New taylor way 3-point backhoe ** **

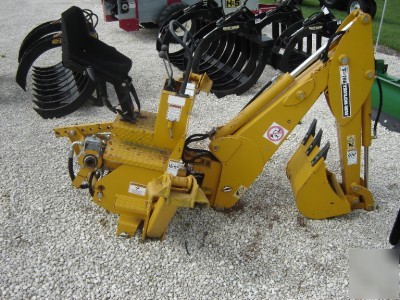

TAYLOR WAY 3-POINT BACKHOE **NEW**
* Works with 35-50 HP tractors with a Category 1 3-point hitch
* The tractor must have a rated lift capacity of 800-3,800 lbs. and up to a 5,000 lb. GVW
* The tractor must have a rated flow of 6-8 gpm
* Height with boom fully retracted is 5'8"
* Width with stabilizers up is 5'6"
* Overall length (including 3 point hitch bracket) is 8'1"
* Operating weight is 1,067 lbs.
* Maximum digging depth is 6'6"
* Overall operating height (fully raised) is 9'7"
* Loading height (bucket at 60 degrees) is 5'10.75"
* Reach from swing post is 9'5.25"
* Stabilizer spread in the operating position is 7'5.5"
* Stabilizer spread in the up position is 5'6"
* Reservoir capacity is 3.2 gallons
* Relief valve setting is 2,610 psi
* Uses Type-A non-foaming hydraulic oil
* Bucket cylinder digging force is 2,247 lbs.
* Dipper cylinder digging force is 1,300 lbs.
* Tooth wrenching strength is 3,300 lbs.
* Swing arc rotation is 140 degrees
* Bucket rotation is 170 degrees
