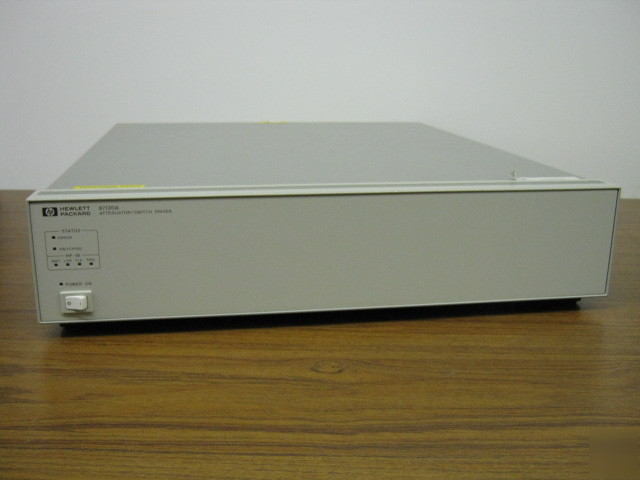

HP Agilent 87130A Attenuator Switch Driver Refurbished
The 87130A Attenuator/Switch Driver is a 3.5 inch, full rack width attenuator/switch driver capable of driving up to 248 electromechanical switch or attenuator sections. The unit is controlled over HP-IB via Standard Commands for Programmable Instruments (SCPI) commands. The unit as been designed for use in both ATE switching systems and computer-controlled bench top applications. The unit has no front panel controls. Manual control is realized through its ITG driver and a computer controller. It can drive 31 switch or attenuator sections directly, and up to an additional 217 switches via seven additional 84940A driver cards (not included).
* Controls up to 248 switch and/or step attenuator sections
* Simple programming through GP-ITG and GP-VEE
* Drive Capacity: Internal Driver: 31 relays; one Agilent 84940A driver card is installed within the instrument
* External Drivers: 217 additional relays; up to 7 additional Agilent 84940A driver cards can be daisy-chained external to the Agilent 87130A. Each Agilent 84940A can drive 31 relays
* Voltage: +24 V 3.0 Vdc (Miswiring the +24 V wire will cause catastrophic driver board failure)
