Atmel extension dip board for avr isp avrisp programmer
Jumper selection for clocking from quartz crystal
Jumper selection for clocking from RC circuit
Jumper selection for clocking from external clock
Click for view in large resolution Using of "AVR DIP Programmer" with "AVR ISP v3.2" for programming of AVR controller

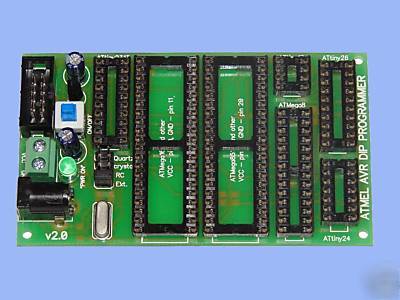

AVR DIP Programmer - extension module for programming ATMEL AVR controllers in DIP case
Module AVR DIP PROGRAMMER is extension to widely known programmers AVR910, AVRISP, STK200, AVR ISP v3.2 (recommended) and other. Iit allows programming ATMEL AVR microcontrollers in DIP case.
The module is intended for the developers in which arrangements on a PCB there is no connector ISP, does not remain free pins of the controller for connecting of the ISP interface, or these pins cannot be used on what or other reason. The module supports all ATMEL AVR microcontrollers in DIP case, having ISP interface
For programming controllers it is necessary external programmer: AVR910, AVRISP, STK200, AVR ISP v3.2 (recommended) or other. External programmer it is connected to the AVR DIP PROGRAMMER by means of a standard 10-pin ISP connector
Pinout of 10-pin connector (see photo)
2. Power supply +5 (input/output)
3. Input for external clocking (if needed)
With programmer AVRISP v3.2 (see photo) an external power supply it it is not necessary: +5V delivered through a ISP cable from programmer.
However with another type of programmer there is a necessity in an external power supply. For this purpose on a PCB of the module AVR DIP PROGRAMMER there are 2 types of power supply connectors: standard power supply connector with diameter of the central contact electrode 2,1mm (+ a feed on the central contact electrode, - a feed on the external contact electrode) and the terminal-block with 2 pins (polarity of voltage is specified on a PCB). The module ATMEL AVR DIP PROGRAMMER have the built in voltage stabilizer +5V. A range of input power supply voltage +6V.. +15V
