Westover HD1 hand held fiber inspection w/ P1 probe
Westover HD1 Hand Held Fiber Inspection w/ P1 Probe Used
Model/Part No:HD1/ P1 Our Item ID: 6146

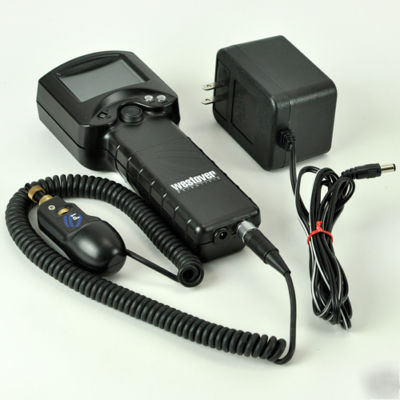

Includes (1) Westover HD1 Hand Held Fiber Inspection w/ P1 Probe as pictured.
Westover HD1 Hand Held Fiber Inspection w/ P1 Probe Unit appears in good shape.
The Westover Scientific Video Inspection Probe is a portable, video microscope used to inspect fiber optic terminations. More specifically, the FBP is used to inspect installed connectors that are located inside hardware devices or in the "backside" of patch panels. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
Patch Panels: Many patch panels feature a design wherein one connector is easily inspected (front), but the other is difficult to access (back). Inspecting the connector on the front side of the panel is commonly performed using a simple fiber inspection microscope. However, the backside connectors are not as easily inspected with traditional microscopes, thus requiring time consuming troubleshooting. The FBP system combines with Westover's line of "Cleaning Sticks" produce a fast and effective means for installing, troubleshooting, or maintaining fiber optic patch panels.
Hardware Devices and Test Equipment: Most hardware devices feature connectors, at the faceplace of a "box", that lead to the back-plane circuitry. These connectors are very difficult to access since they are built into the device's enclosure. If a contaminates jumper is inserted, the termination inside the divice can become contaminated and contribure to signal loss. Many test equipment designs feature the same type of "back plane" fiber wherein a critical fiber termination lies just inside a piece of hardware. The FBP "Probe" used in conjuntion with Westover's line of "Cleaning Sitcks" can be used to ensure that the termination inside is clean.
Mil-Aero Connectors: Most Mil-Aero connectors are based on multiple fiber plugs that embody "Termini" ferrules. Typically, one end of the connector contains multiple "pins" and the other contains multipler "sockets". In either cas, you cannot inspect the terminations with a traditional microscope because you're not able to "look" down inside the sockets. Using the FBP "Probe", you are able to access the fiber endfaces, and inspect these connectors fully assembled.
Item Tested?: Partially TestedPhysical Condition: Good; Working Condition: Not Fully Test, Basic Functions Tested Good8 | 18x 6x6 | 1
