Renishaw PH10MQH probe with TP2 head

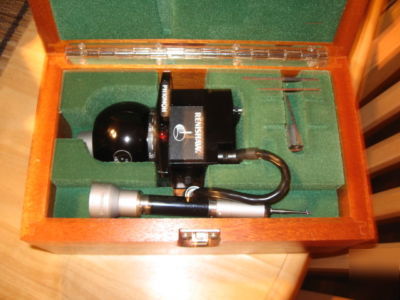

I have been told that this unit has had very little use. It is still housed in its original factory wooden case. A real bargan with a combined price of over $24,000 new, don't miss out on this exceptional slightly used unit.
The PH10M motorized probe head has been developed for the new generation of contact and non-contact scanning probes. It has 3 times the torque, allowing probe extension bars up to 300mm long to be used.
The PH10M has an autojoint mounting.
Cycle Time: (90 move): 3.5 seconds
A Axis: 105 -0 in 7.5 steps = 15 positions
B Axis: 180 in 7.5 steps = 48 positions
Total Number of positions: 720
Maximum Extension Bar Length: 300mm using PAA3 extension
Head Mounting: Shank to suit your CMM
Probe Mounting Facility: Autojoint
Probe Head Control: PHC10-2 (purchased separately)
The PH10MQ/MQH models can be mounted inside the CMM's quill for a greater working envelope by increasing the Z azis travel.
The TP2 has become the industry-standard product, against which all others are judged. It is a 13mm diameter standard kinematic touch trigger probe with an M8 thread mount. It has adjustable stylus force to enable the probe to support a wide range of styli. The TP2 is small, light and compatible with a wide range of accessories. It is suitable for both manual and DCC machines.
The TP20 probe offers these same features, but with the extra benefit of module changing.
Other than the accompanying images and description in each listing, there are no additional parts, or accessories. You are advised to contact us for additional information on any and all items. Unless otherwise stated in the description, the images show the actual item for sale. All images are photographed by us and are the exclusive property of us. The "description" is written to the best of our knowledge but is not guaranteed to be accurate. When in doubt, please email.
