> Harig #1 fixture w/case harig mfg. co.used 3 mos old

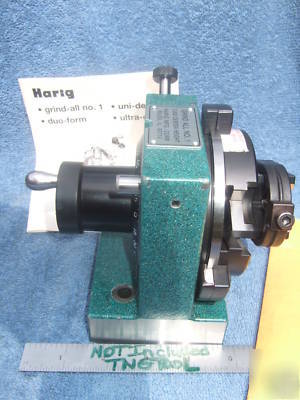

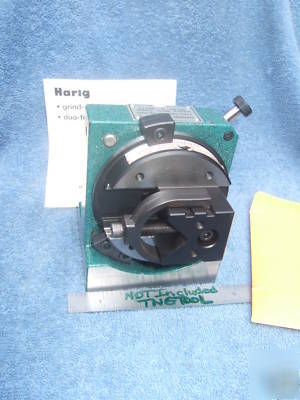

Harig #1 fixture w/case harig mfg. co.used 3 mos old

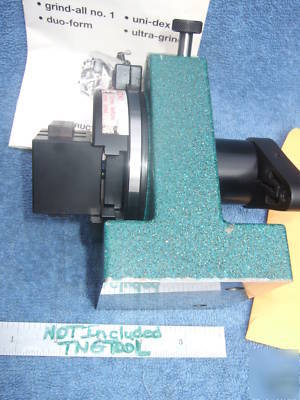

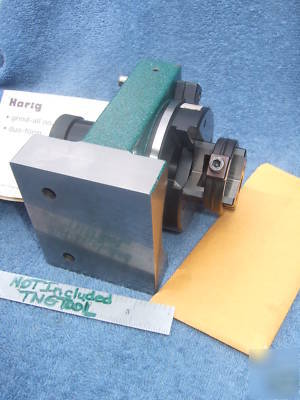

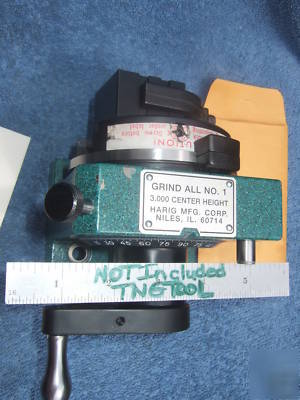

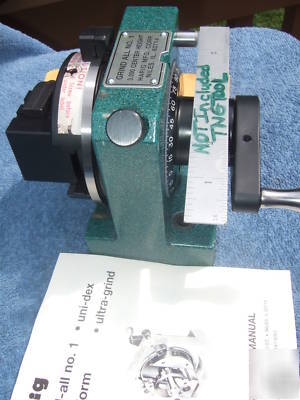

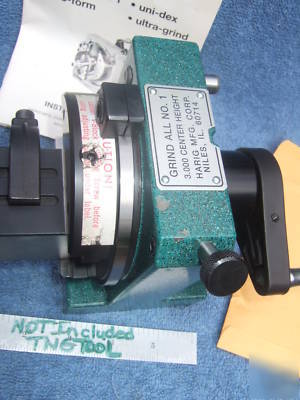

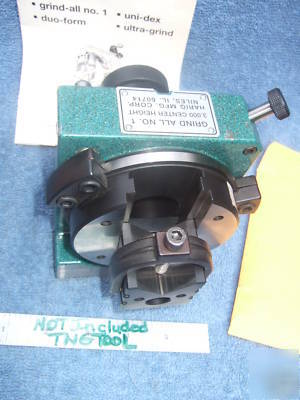

HARIG MFG CO. GRIND-ALL No. 1 (P/N 010-100) IN EXCELLENT USED CONDITION. FIXTURE WAS PURCHASED IN MAY OF 2009 BY FORMER OWNER AND WAS PURCHASED BY US IN JUNE OF 2009. FIXTURE DOES HAVE NUMEROUS CHIPS IN PAINT LIKE IT WAS A POOR PAINT JOB? I SEE NO DAMAGE NEAR MINOR CHIPS BUT PAINT SEEMS TO BE FLAKY?? I CANNOT EXPLAIN THIS. THE SECOND FIXTURE PURCHASED AT SAME TIME AND ALSO LISTED DOES NOT SEEM TO HAVE THIS ISSUE? NOR DOES THE THIRD USED ONE WITH THE HARDENED 0-1 EXTENSION PLATE UNDER IT.
GREAT TOOL AT GREAT $$ SAVINGS TO YOU! CURRENT LIST ON MSC BIG BOOK PAGE 1541 IS $2187.94!!! GET A VERY NICE TIGHT UNIT HERE AND SAVE SOME $$ OFF PRICE OF A NEW ONE!
ALSO LISTED ARE ECLIPSE MAGNETIC CHUCKS THAT WORK VERY WELL ON THESE FIXTURES. A VARIABLE SPEED MOTOR IS ALSO AVAILABLE FOR THIS PART NO. 10-70 JUST ASK. A NEW SUBURBAN TOOL CO. MASTER-GRIND IS ALSO LISTED IN OUR STORE CHECK IT OUT!!!!!!
Harig's benchmark precision v-block fixture has improved toolroom productivity since 1951. The original patent holder, copied but never duplicated, is the most accurate indexer of its kind available today. Time tested for high precision work within "tenths," the Grind-All No. 1 sets the standard for grinding punches, core pins, and EDM electrodes. Also used for precision indexing, inspecting, milling, boring, and radius dressing. Complete line of accessories increase applications and make the Grind-All No. 1 the most versatile v-block fixture ever. Over 20,000 units in action worldwide. When accuracy is of the utmost importance, the Grind-All No. 1 enables you to work with close tolerances. Reliability backed by Harig's trademark service.
Hardened and ground tool steel with solid one piece construction
Preloaded ball and race design provides highest accuracy
V-Block adjusting screw allows for quick movement of v-block to +/- 0.0001 without tapping
Single screw for fast locking of v-block

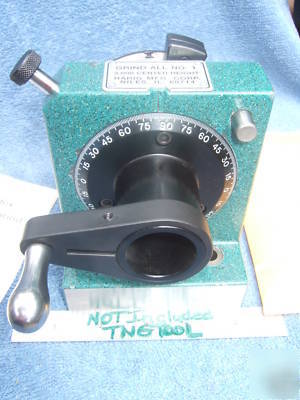

360 degree graduated dial for convenience
24 division index plate with precision index pin locks in every 15 degrees to +/- 10 seconds
2 adjustable stops work with stop pin to set accurate angles between index locations

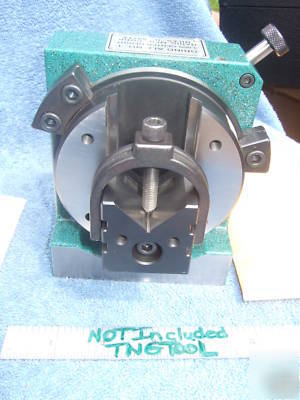

U-Clamp and screw secure piece part in v-block
Removable v-block for accurate face-plate work
Narrow profile maximizes work area under grinding wheel
Mounting holes on base of unit for use with Harig accessories

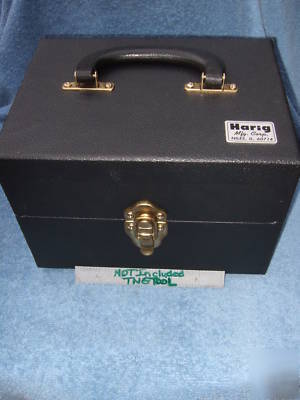

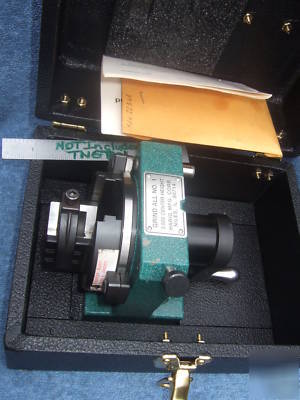

Includes carrying case for protective dust-free storage
Full repair service and replacement parts available
