Dry film photoresist sheets+developer - copper clad pcb
You can create incredibly fine, detailed circuit boards using this high quality DuPont Riston Photoresist. It is the same material that professional PCB shops use.

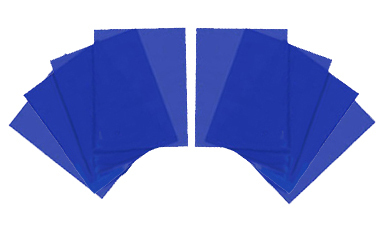

* Eight sheets of Negative acting photoresist. Each sheet is 6x8 inches (15.24cm x 20.32cm).
* Guide to determine initial exposure time.
1. Prepare: Clean your board under running water with Ajax/Comet and nylon scrubber. Rinse well. In subdued lighting, precut dry film a little larger than your board.
2. Apply Resist: Use two small pieces of scotch tape to remove release layer and apply resist to board.
A. Apply using a hot roll laminator, or...
B. Apply using the wet method. Pool some water on top of your board. Dip one end of film into the pool, slide it to the edge of the board and slowly lower into place. Use a rubber roller to remove excess water, working from the center outwards. Place board in 200 F (93 C) preheated oven for 15 minutes.
3. Expose: Place your negative artwork over resist. Use a weighted pane of glass to press the artwork snuggly to the board, and expose to UV-A light source. (Fluorescent black light, Florescent UV bug zapper light, Blacklight Blue(BLB), etc.) Light source should be about 8-12" away from the board being exposed. Amount of time to expose depends on type of light used and intensity.
4. Develop: Let rest for 10 minutes, remove clear cover layer with a small piece of tape, and develop board in a mixture of around 1 cup warm water to 1/2 teaspoon developer (~1% by weight). After 3 minutes pull out of developer and hold under running water, you can rub with fingers, moist paper towel or sponge. It can always be placed back in the developer if it needs more time. Carefully inspect in full light.
Tips to a perfect circuit board:
* Dark areas of your negative artwork should be completely black and block all light. Use the darkest setting on your printer. For transparencies, it is also possible to print two copies and double them up.
* A cheap alternative to printable overhead transparencies is Vellum or Tracing paper. They are easily printed on and virtually transparent to UV light.
* Choose a light source that gives short exposure times. Keeping the light a set distance from the board during exposure will give sharper more defined edges to traces and pads.
