Reliance R20216B pro/tran 5000 watt transfer switch

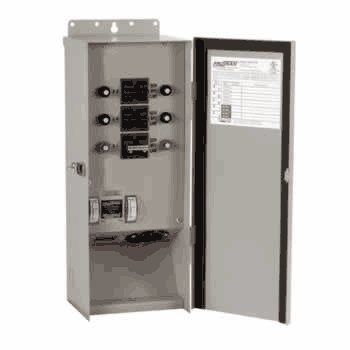

Reliance R20216B Pro/Tran 5000 Watt Transfer Switch
Reliance R20216B Pro/Tran Outdoor 5000 Watt Transfer Switch
The Reliance Pro/Tran R Series (NEMA 3R) transfer switches are ideal for outdoor installation in residential and commercial applications. The gasketed steel cabinet is powder-coated, with padlock-able cover, and will accommodate the generator cord with the cover closed. Included is 16-inch length of flexible non-metallic, liquid-tight conduit with fittings. Simply mount the cabinet, attach the conduit and feed the clearly-marked wires from the transfer switch into the load center. Then select the load center circuits needed in an emergency and connect them to the wires leads from the transfer switch. Each cabinet includes six combination 1/2-inch and 3/4-inch knockouts, one on each side, two on the bottom and two on the back.
All Rain-tight Pro/Tran transfer switches feature branch-circuit rated breakers, heavy-duty power inlet and non-defeatable (break-before-make) double-throw switches. All 125/250V models feature exclusive Reliance watt-meters with accuracy of 3% throughout the entire range.
All Raintight Pro/Tran transfer switches feature branch-circuit rated breakers,
Heavy-duty power inlet and non-defeatable (break-before-make) double-throw switches.
Ideal for outdoor installation in residential and commercial applications.
Gasketed steel cabinet is powder-coated with padlock-able cover, and will accommodate the generator cord with the cover closed.
All 125/250V models feature exclusive Reliance watt-meters with accuracy of 3% throughout the entire range.
Max. Generator Running Watts: 5000
Max. Single-Pole Circuits: 6
Max. Double-Pole Circuits: 1
Max. Combined Load @ 125 VAC: 40
Max. Combined Load @ 250 VAC: 20
15 Amp Single Pole Circuit Breakers: 4
20 Amp Single Pole Circuit Breakers: 2
Power Inlet, NEMA POWER INLET, NEMA: L14-20
Recommended Cord Size (gauge): 12
Conduit Size (inches): 3/4
Dimensions H x W x D (inches): 18.5x7.5x7
* Reliance R20216B Pro/Tran Outdoor Transfer Switch
* 16-inch length of flexible non-metallic, liquid-tight conduit with fittings
