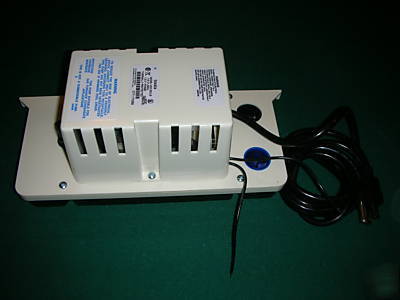

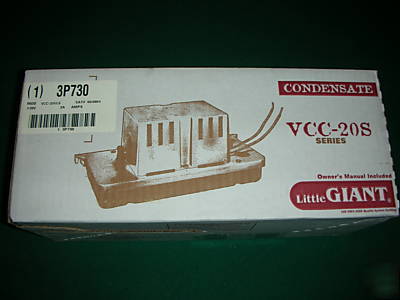

Little giant vcc-20S condensate pump
Input Power: 115V / 60Hz / 1.5A / Single Phase

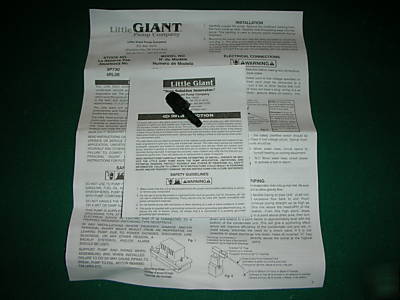

Here is some information from the manufacturer. Please note that these are general specifications. The item for sale configured exactly as pictured and listed above.
Your Little Giant condensate pump is designed as an automatic condensate removal pump for water dripping off an air conditioner evaporative coil. The pump is controlled by a float/switch mechanism which turns the pump on when approximately 1" of water collects in the tank, and automatically switches off when the tank drains to approximately 1/2".
The Little Giant VCC-20ULS Automatic Condensate Removal Pump. The VCC Series is a low profile compact size for applications with limited space. The reservoir has a 3/10 gallon capacity. Pumps feature a vertical-type pump with stainless steel motor shaft, rust proof, high impact ABS tank and motor cover. Discharge is a 3/8" O.D. barbed tubing adapter/check valve. Pump features a safety switch that can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow. Pump is rated for high-efficiency gas furnace applications that produce an acidic condensate. Thermally protected motor is UL and CSA listed. The 554210 model has 230V, 50/60 HZ, 0.6 Amps
