Hp / agilent 8765B coaxial spdt switch dc-20GHZ opt. 24

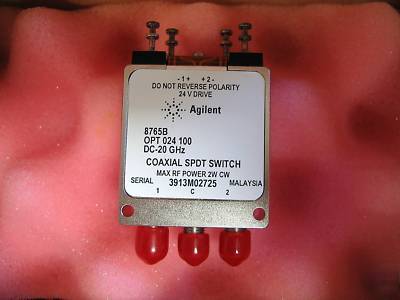

HP / AGILENT 8765B COAXIAL SPDT SWITCH DC-20GHz
Description: Unit is unused and includes original factory calibration certificate.This unit includes option 100 (unknown) and option 024, the 24Vdc supply voltage with 3 inch ribbon cable terminated with a single in-line. The Agilent 8765B offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability. Features: Unterminated single pole double throw switch, Break-before-make ,SMA female connectors, Isolation: 110 dB -2.25 dB/GHz, Insertion loss: < 0.2 dB + 0.025 dB/GHz, Voltage options covering drive voltages between 4.5-32 volts dc.
