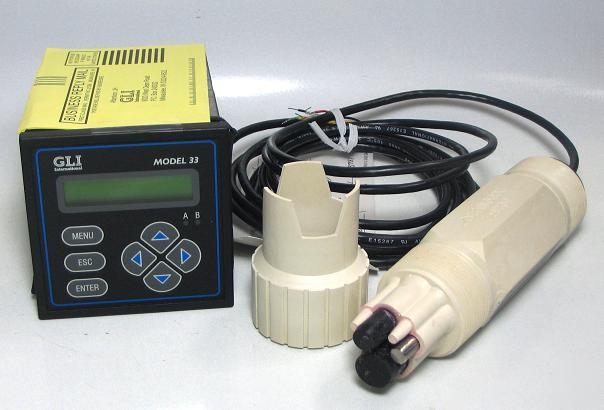

Gli P33 panel-mount 1/4 din style ph and orp analyzer
GLI P33 Panel-mount 1/4 DIN Style PH AND ORP ANALYZER
The Model P33 displays measured pH (or ORP) and temperature either separately or together. Both analog outputs can also be shown. Front panel red LEDs indicate relay "on/off" status.
The two-line, 16 character backlit LCD provides excellent viewing contrast under all lighting conditions.
Panel-mount 1/4 DIN Case with NEMA 4X Front
The P33 is housed in a 1/4 DIN plastic case that features a NEMA 4X front panel.
The analyzer exceeds U.S. and meets European standards for EMI and RFI.
The simple keypad and logical menu structure make this analyzer easy to use. Menu screens guide you through setup, calibration, operation, and test/maintenance functions.
For security, use the P33 s passcode capability to restrict access to configuration settings and calibration to authorized personnel only.
Accepts GLI Differential Sensor or Conventional Combination Electrode
The Model P33 can be used with any GLI Differential Technique pH or ORP sensor, or any conventional combination electrode. For temperature compensation, the P33 accepts a Pt 1000 RTD, Pt 100 RTD or NTC 300 ohm thermistor.
Each of the two isolated analog outputs can be set to 0-20 mA or 4-20 mA, and assigned to represent the measured pH (or ORP) or temperature. During calibration, both outputs can be held at their last measured values, transferred to preset values, or remain active.
Simple Interactive Diagnostics
Built-in diagnostics continuously test analyzer and sensor operation.
